Record "type" definition. More...

#include <LayoutAV.h>

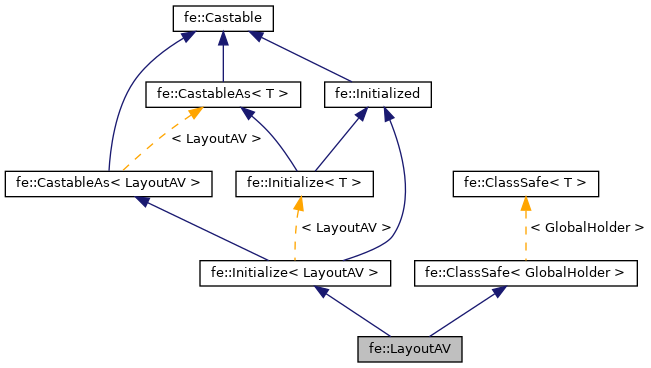

Inheritance diagram for fe::LayoutAV:

[legend]

Public Member Functions
	LayoutAV (sp< Scope > &scope)

	LayoutAV (sp< Scope > &scope, const String &name)

	LayoutAV (Scope *pScope, const String &name)

LayoutAV &	copy (const LayoutAV &other)

virtual void	initialize (void)

virtual void	populate (const String &attribute_name)
	Convienience function to Scope::populate. More...

virtual void	populate (const String &attribute_name, const String &attribute_type)
	Convienience function to Scope::populate. More...

virtual void	populate (const BaseAccessor &accessor)
	Convienience function to Scope::populate. More...

virtual void	populate (sp< Attribute > spAttribute)
	Convienience function to Scope::populate. More...

void	populate (sp< LayoutAV > spLayout)
	Convienience function to Scope::populate. More...

virtual void	setName (const String &name)

virtual const String &	name (void) const

virtual const String	verboseName (void) const

virtual void	setConstruct (bool construct)

virtual const bool &	construct (void) const

virtual hp< Scope > &	scope (void)

virtual void	peek (Peeker &peeker)

virtual FE_UWORD	attributeCount (void) const

virtual sp< Attribute >	attribute (FE_UWORD localIndex)

virtual bool	checkAttribute (FE_UWORD a_locator) const

virtual bool	checkAttributeStr (const String &a_name)

virtual void	resizeLocatorTable (FE_UWORD a_size)

RecordAV	createRecord (void)

void	createRecord (RecordAV &r_new)

void	freeArrayIndex (const FE_UWORD &aArrayIndex)

virtual void	notifyOfAttributeChange (sp< Depend > &depend)

FE_UWORD	avSize (void)

void *	baseOfAV (FE_UWORD a_locatorIndex)

Public Member Functions inherited from fe::Initialized
void	initializeAll (void)

void	setActive (bool a_active)

Static Public Attributes
static const FE_DL_PUBLIC FE_UWORD	locatorNone = (FE_UWORD)(-1)

static const FE_DL_PUBLIC FE_UWORD	arrayindexNone = (FE_UWORD)(-1)

Private Member Functions
	LayoutAV (const LayoutAV &other)

LayoutAV &	operator= (const LayoutAV &other)

void	constructor (sp< Scope > &scope)

void	addMissingAttributes (void)

void	assignDefaultAttributes (RecordAV &r_new)

void	destructAttributes (const FE_UWORD &a_arrayIndex)

Array< sp< BaseTypeVector > > &	attributeVector (void)

Array< FE_UWORD > &	locatorTable (void)

const FE_UWORD &	idr (const FE_UWORD &a_index) const

void	acquireArrayIndex (const FE_UWORD &aArrayIndex)

void	releaseArrayIndex (const FE_UWORD &aArrayIndex)

unsigned int	serialIndex (void) const

void	startUsing (void)

bool	isExactlyBitset (const t_bitset a_bitset) override

bool	containsBitset (const t_bitset a_bitset) override

void	createRecords (RecordAV &r_new, U32 a_count)

void *	voidAccess (const FE_UWORD &a_locatorIndex, const FE_UWORD &a_arrayIndex) const

Private Attributes
String	m_name

hp< Scope >	m_hpScope

Array< sp< BaseTypeVector > >	m_attributeVector

Array< FE_UWORD >	m_locatorTable

Array< FE_UWORD >	m_idr

std::set< FE_UWORD >	m_freeList

FE_UWORD	m_avSize

FE_UWORD	m_allocSize

sp< TypeVector< std::atomic< int > > >	m_rc

sp< TypeVector< std::atomic< int > > >	m_sn

bool	m_construct

unsigned int	m_serialIndex

bool	m_in_use

bool	m_need_defaults

Friends
class	RecordAV

class	WeakRecordAV

class	RecordArrayAV

Additional Inherited Members
Protected Types inherited from fe::Initialized
typedef void(*	InitializeFunction) (Initialized *)

Protected Member Functions inherited from fe::Initialized
void	addInitializer (InitializeFunction function)

Detailed Description

Record "type" definition.

A Layout is a definition of Attribute layout in Record instances.

Layout objects can only be created via a Scope. For typical use all operations on Layout objects are also done through Scope methods.

Todo:: full data system guide

Member Function Documentation

◆ populate() [1/5]

void fe::LayoutAV::populate ( const String & attribute_name )

virtual

Convienience function to Scope::populate.

References fe::Component::name().

◆ populate() [2/5]

void fe::LayoutAV::populate	(	const String &	attribute_name,
		const String &	attribute_type
	)

virtual

Convienience function to Scope::populate.

References fe::Component::name().

◆ populate() [3/5]

void fe::LayoutAV::populate ( const BaseAccessor & accessor )

virtual

Convienience function to Scope::populate.

This particular one does a check if the layout is locked and if so verifys the exsitence of the attribute.

References fe::Component::name().

◆ populate() [4/5]

void fe::LayoutAV::populate ( sp< Attribute > spAttribute )

virtual

Convienience function to Scope::populate.

References fe::Component::name().

◆ populate() [5/5]

void fe::LayoutAV::populate ( sp< LayoutAV > spLayout )

Convienience function to Scope::populate.

References fe::Component::name().
