fe::Library Class Reference

Interface into a dynamic library to access its factories. More...

#include <Library.h>

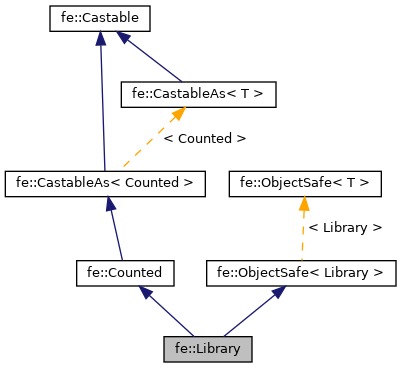

Inheritance diagram for fe::Library:

Classes
class	BaseFactory
	Type-nonspecific base class for factories. More...
class	Factory
	Type-specific factory template. More...

Public Member Functions
template<typename T >
void	add (const String &name)
	Create a named factory for the given type and add it to the library's collection. More...
template<typename T >
void	addSingleton (const String &name)
	Create a named factory for the given type, but treat it as a singleton. More...
const String &	name (void) const
	Return the library name. More...
void	populateManifest (Array< String > &names) const
	Append the names of the available factories to the given array. More...
U32	adjustedReferences (void) const
	Return number of references adjusted for singletons. More...
void	releaseSingletons (void)
	Release all instantiated singletons. More...
I32	strayCount (void)
I32	adjustStrayCount (I32 inc)
sp< Component >	create (U32 factoryIndex)
	Create component using the known index. More...
String	factoryName (U32 factoryIndex)
hp< Registry >	registry (void) const
void	setRegistry (sp< Registry > spRegistry)
sp< Library >	getChainLibrary (void) const
void	setChainLibrary (sp< Library > &rspLibrary)
	Enforce FIFO by referencing prev lib on stack. More...
void	setName (const char *a_name)
	for use in static lib scenario More...
DL_Loader *	getLoader (void) const
void	setLoader (DL_Loader *pLoader)
Public Member Functions inherited from fe::Counted
virtual void	acquire (void)
	Increment the reference count. More...
virtual void	acquire (int &rCount)
	Increment the reference count (and get the count) More...
virtual void	release (void)
	Decrement the reference count. More...
virtual void	abandon (void)
	Decrement the reference count. More...
int	count (void) const
	Return the count of references. More...
void	setName (const String &)
void	trackReference (void *pReference, String what)
void	untrackReference (void *pReference)
void	registerRegion (void *pT, U32 bytes)

Static Public Member Functions
template<typename T >
static sp< Component >	create (String name, Library *pLibrary=NULL, I32 a_factoryIndex=-1)
	Instantiate and initialize a component without using a factory. More...
Static Public Member Functions inherited from fe::Counted
static String	reportTracker (void)
static U32	trackerCount (void)

Private Member Functions
void	addFactory (BaseFactory *pFactory, BWORD singleton)

Static Private Member Functions
static void	initComponent (sp< Component > &rspComponent, void *ptr, U32 size, String name, Library *pLibrary, I32 a_factoryIndex)

Private Attributes
Array< FactoryData >	m_factories
sp< Library >	m_spChainLibrary
DL_Loader *	m_pLoader
I32	m_strayCount
Registry *	m_pRegistry
String	m_name

Additional Inherited Members
Protected Member Functions inherited from fe::Counted
int	releaseInternal (void)
	Decrement the reference count. More...
void	suppressReport (void)

Detailed Description

Interface into a dynamic library to access its factories.

Each dynamic library should contain a single code block exposing component implementations it can create. For example,

extern "C"
{

FE_DL_EXPORT fe::Library *CreateLibrary(fe::sp<fe::Master>)
{
    fe::Library *pLibrary = new fe::Library();
    pLibrary->add<MyComponent>("my.component");
    pLibrary->addSingleton<MySingleton>("my.singleton");
    return pLibrary;
}

}

This code block will create the neccessary factories. It is not optional since omitting it makes the library useless (you can set up automatic dynamic linking in your build).

Another code block can be optionally used to automatically load any number of other libraries prior to the given library. For example,

extern "C"
{

FE_DL_EXPORT void ListDependencies(fe::List<fe::String*>& list)
{
    list.append(new fe::String("otherDL"));
    list.append(new fe::String("anotherDL"));
}

}

If this block is omitted, no dependency preloading is performed.

By convention, these two blocks are provided together in a file named like moduleDL.cc, one for each module.

Member Function Documentation

add()

template<typename T >

void fe::Library::add ( const String &  name )

inline

Create a named factory for the given type and add it to the library's collection.

addSingleton()

template<typename T >

void fe::Library::addSingleton ( const String &  name )

inline

Create a named factory for the given type, but treat it as a singleton.

adjustedReferences()

U32 fe::Library::adjustedReferences

(

void

)

const

Return number of references adjusted for singletons.

Once this drops to 1 plus the number of factories, there are no outstanding references outside of the Library and the singletons it has instantiated.

create() [1/2]

sp< Component > fe::Library::create

(

U32

factoryIndex

)

Create component using the known index.

create() [2/2]

template<typename T >

static sp<Component> fe::Library::create ( String  name, Library *  pLibrary = NULL, I32  a_factoryIndex = -1  )

inlinestatic

Instantiate and initialize a component without using a factory.

This is useful for unit tests that don't want to utilize a proper library. It is not intended for general use.

You have to explicitly provide the class type as the template argument.

factoryName()

String fe::Library::factoryName

(

U32

factoryIndex

)

References fe::Component::factoryIndex().

getChainLibrary()

sp<Library> fe::Library::getChainLibrary ( void  ) const

inline

getLoader()

DL_Loader* fe::Library::getLoader ( void  ) const

inline

name()

const String& fe::Library::name ( void  ) const

inline

Return the library name.

populateManifest()

void fe::Library::populateManifest

(

Array< String > &

names

)

const

Append the names of the available factories to the given array.

registry()

hp< Registry > fe::Library::registry

(

void

)

const

References fe::Handled< T >::getHandle().

releaseSingletons()

void fe::Library::releaseSingletons

(

void

)

Release all instantiated singletons.

This command is intended to be part of an internal shutdown procedure. If any of the singletons was still otherwise referenced and an attempt is made to create the singleton again, a new independent instance of the singleton will be created.

setChainLibrary()

void fe::Library::setChainLibrary ( sp< Library > &  rspLibrary )

inline

Enforce FIFO by referencing prev lib on stack.

setLoader()

void fe::Library::setLoader ( DL_Loader *  pLoader )

inline

References fe::String::basename(), fe::String::chop(), fe::DL_Loader::name(), and fe::String::prechop().

setName()

void fe::Library::setName ( const char *  a_name )

inline

for use in static lib scenario

setRegistry()

void fe::Library::setRegistry

(

sp< Registry >

spRegistry

)

---

The documentation for this class was generated from the following files:

• Library.h
• Library.cc
