Dictionary of Arbitrary Instances. More...

#include <Catalog.h>

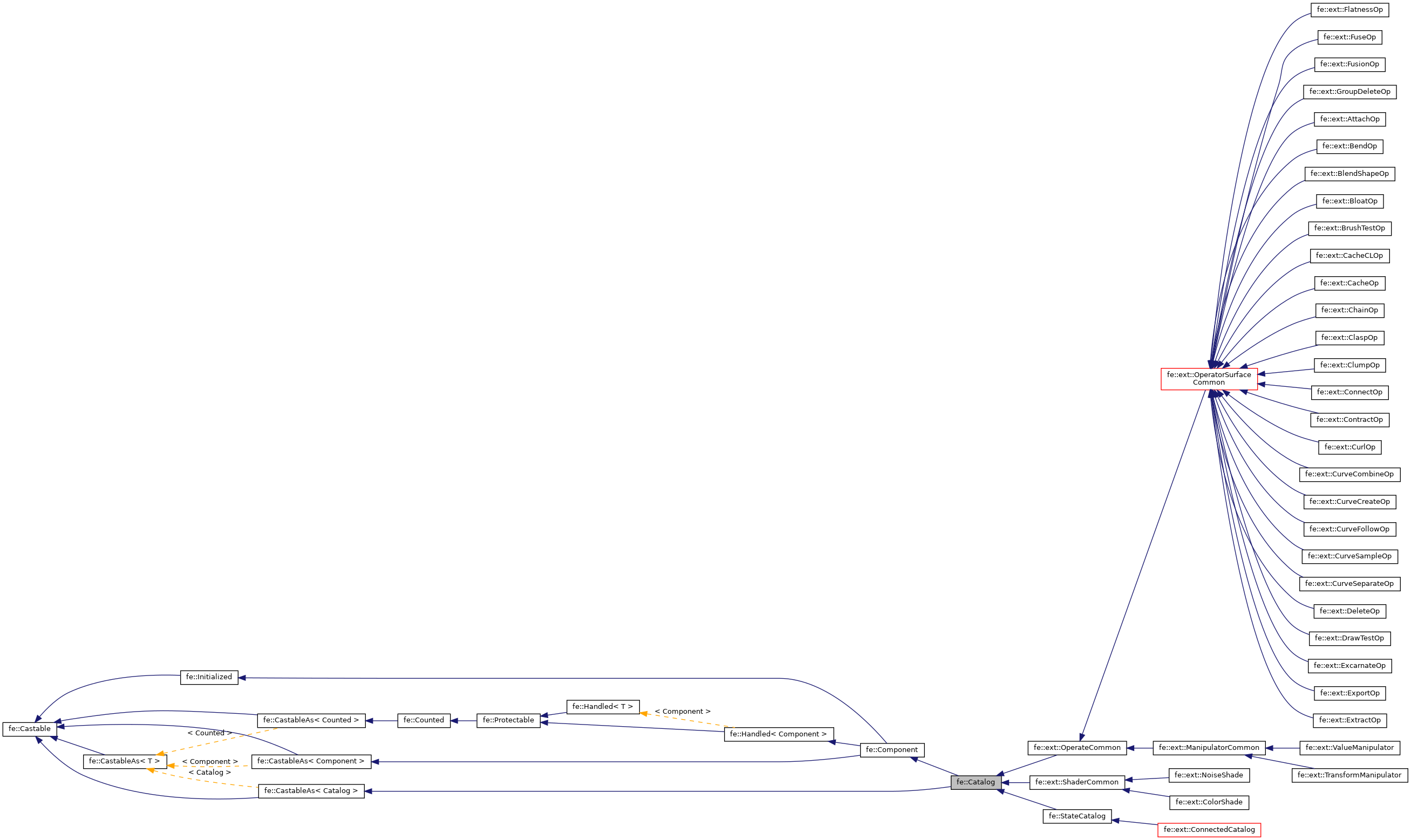

Inheritance diagram for fe::Catalog:

[legend]

Public Member Functions
sp< Catalog >	catalogShallowCopy (void)
	Returns a mirror of the catalog. More...

sp< Catalog >	catalogDeepCopy (void)
	Returns a duplicate of the catalog. More...

U32	catalogSize (void) const
	Returns the number of name keys. More...

String	catalogKey (U32 index) const
	Returns a key by ordered index. More...

void	catalogKeys (Array< String > &a_keys, String a_pattern=".*") const
	Returns keys in order of creation. More...

void	catalogProperties (String a_name, Array< String > &a_properties) const
	Returns properties for a key. More...

BWORD	cataloged (String a_name, String a_property="value") const
	Returns TRUE if the given property for the given name has been created. More...

BWORD	catalogedAny (String a_name) const
	Returns TRUE if any property for the given name has been created. More...

void	catalogClear (void)
	Remove all entries. More...

void	catalogOverlay (sp< Catalog > a_spOtherCatalog, Array< String > *a_pTypeList=NULL, BWORD a_shallow=FALSE)
	Duplicates entries from another catalog. More...

sp< Component >	catalogComponent (String implementation, String a_name, String a_property="value")
	Returns a component entry of the given property for the given name. More...

sp< Component >	catalogComponent (sp< Component > a_spComponent, String a_name, String a_property="value")
	Returns a component entry of the given property for the given name. More...

Instance &	catalogInstance (Instance &instance, String a_name, String a_property="value")
	Returns the literal Instance of the given property for the given name. More...

Instance &	catalogInstance (String a_name, String a_property="value")
	Returns the literal Instance of the given property for the given name. More...

const fe_type_info &	catalogTypeInfo (String a_name, String a_property="value") const
	Returns the type_info of the given property for the given name. More...

const String	catalogTypeName (String a_name, String a_property="value") const
	Returns the type name of the given property, determined by the TypeMaster. More...

template<class T >
BWORD	catalogTypeIs (String a_name, String a_property="value") const
	Returns TRUE if given catalog entry match the template type. More...

template<class T >
T &	catalog (String a_name, String a_property="value")
	Returns existing catalog entry if already set or a default if not. More...

template<class T >
T &	catalog (String a_name, String a_property, const T &a_default)
	Returns existing catalog entry if already set or default if not. More...

template<class T >
const T &	catalogOrDefault (String a_name, String a_property, const T &a_default) const
	Returns existing catalog entry if already set or default if not. More...

template<class T >
const T &	catalogOrDefault (String a_name, const T &a_default) const

String	catalogValue (String a_name, String a_property="value") const
	Returns existing catalog entry, converted to a String. More...

I32	catalogBytes (String a_name, String a_property, Array< U8 > &a_rByteArray) const
	Converts a catalog entry, into raw binary. More...

BWORD	catalogSet (String a_name, String a_property, String a_value)
	Sets the value for a catalog entry, converted to the existing type, from a given String. More...

BWORD	catalogSet (String a_name, String a_value)

BWORD	catalogSet (String a_name, String a_property, String a_type, String a_value, Instance **a_ppInstance=NULL)
	Sets the value for a catalog entry, converted to the existing type, from a given String. More...

BWORD	catalogSet (String a_name, String a_property, String a_type, const U8 a_pRawBytes, I32 a_byteCount, Instance *a_ppInstance=NULL)
	Sets the value for a catalog entry, using a raw byte block. More...

template<class T >
T &	catalogOrException (String a_name, String a_property) const
	Returns an existing catalog entry, if it exists. More...

bool	catalogLookup (const String a_name, String a_property, Instance &a_instance) const
	Gets the Instance of an existing catalog entry, if it exists. More...

bool	catalogLookup (const String a_name, Instance &a_instance) const

void	catalogMoveToEnd (String a_name)
	Move all properties for name to bottom. More...

void	catalogRemove (String a_name)
	Remove all properties for a name. More...

void	catalogRemove (String a_name, String a_property)
	Remove one property for a name. More...

void	catalogDump (void) const
	Print a description of the catalog to the log. More...

sp< TypeMaster >	typeMaster (void) const

Public Member Functions inherited from fe::Component
const String &	name (void) const
	Return the components chosen name. More...

const String	verboseName (void) const
	Return the annotated chosen name. More...

void	setName (const String &name)
	Rename the component to anything you want. More...

hp< Registry >	registry (void) const
	Get the Registry that created this component. More...

void	adjoin (sp< Component > spComponent)
	Tie this component's lifetime to another. More...

sp< Component >	create (const String &implementation, BWORD quiet=FALSE) const
	Convienience function to registry()->create() More...

void	disjoin (void)
	Untie component from Hub, if connected. More...

String	factoryName (void)

void	setLibrary (sp< Library > spLibrary)
	Store a reference to the library used to instantiate this component. More...

sp< Library >	library (void)
	Get the library that created the component. More...

void	setFactoryIndex (I32 a_factoryIndex)
	Set the library's factory index. More...

I32	factoryIndex (void)
	Get the library's factory index. More...

void	setSingleton (BWORD set)
	Specify whether component is a singleton. More...

BWORD	isSingleton (void)
	Return whether component is a singleton. More...

virtual void	acquire (void)
	Specialized reference increment. More...

virtual void	release (void)
	Specialized reference decrement. More...

Public Member Functions inherited from fe::Handled< Component >
const hp< Component > &	getHandle (void) const
	Get a safe handle to this object. More...

Public Member Functions inherited from fe::Protectable
virtual I32	protection (void) const

virtual void	protect (void)

virtual void	unprotect (void)

virtual Protectable *	clone (Protectable *pInstance=NULL)

Public Member Functions inherited from fe::Counted
virtual void	acquire (int &rCount)
	Increment the reference count (and get the count) More...

virtual void	abandon (void)
	Decrement the reference count. More...

int	count (void) const
	Return the count of references. More...

void	setName (const String &)

void	trackReference (void *pReference, String what)

void	untrackReference (void *pReference)

void	registerRegion (void *pT, U32 bytes)

Public Member Functions inherited from fe::Initialized
void	initializeAll (void)

void	setActive (bool a_active)

Private Member Functions
template<class T >
T &	createInstance (String a_name, String a_property="value")

Private Attributes
std::map< String, InstanceMap >	m_instanceMapMap

std::map< I32, String >	m_orderMap

I32	m_highest

Additional Inherited Members
Static Public Member Functions inherited from fe::Counted
static String	reportTracker (void)

static U32	trackerCount (void)

Protected Types inherited from fe::Initialized
typedef void(*	InitializeFunction) (Initialized *)

Protected Member Functions inherited from fe::Handled< Component >
void	abandonHandle (void)

Protected Member Functions inherited from fe::Counted
int	releaseInternal (void)
	Decrement the reference count. More...

void	suppressReport (void)

Protected Member Functions inherited from fe::Initialized
void	addInitializer (InitializeFunction function)

Related Functions inherited from fe::Component
FE_DL_EXPORT void FE_CDECL	checkUnload (sp< Library > &pLibrary, Component *pComponent=NULL)
	Delete the component and unload libraries where appropriate. More...

Detailed Description

Dictionary of Arbitrary Instances.

TODO allow reordering TODO allow individual removal (remember to also remove from order map)

Member Function Documentation

◆ catalog() [1/2]

template<class T >

T & fe::Catalog::catalog	(	String	a_name,
		String	a_property = `"value"`
	)

Returns existing catalog entry if already set or a default if not.

If entry does not exist, this version will create an entry and set it to the appropriate Type default.

The default property is 'value'.

Referenced by fe::ext::NetHost::accessSpace(), and fe::ext::NetHost::hasSpace().

◆ catalog() [2/2]

template<class T >

T & fe::Catalog::catalog	(	String	a_name,
		String	a_property,
		const T &	a_default
	)

Returns existing catalog entry if already set or default if not.

If entry does not exist, this version will create an entry and set it to the given default.

◆ catalogBytes()

I32 fe::Catalog::catalogBytes	(	String	a_name,
		String	a_property,
		Array< U8 > &	a_rByteArray
	)		const

Converts a catalog entry, into raw binary.

Returns the number of bytes in the buffer.

If entry does not exist, zero bytes is returned.

◆ catalogClear()

void fe::Catalog::catalogClear ( void )

inline

Remove all entries.

◆ catalogComponent() [1/2]

sp< Component > fe::Catalog::catalogComponent	(	String	implementation,
		String	a_name,
		String	a_property = `"value"`
	)

Returns a component entry of the given property for the given name.

If the entry does not exist, it may be created using the given implementation name.

The return value will be invalid if the implementation could not be instantiated.

◆ catalogComponent() [2/2]

sp< Component > fe::Catalog::catalogComponent	(	sp< Component >	a_spComponent,
		String	a_name,
		String	a_property = `"value"`
	)

inline

Returns a component entry of the given property for the given name.

Regardless of whether the entry previously existed, it is replaced by the given Component.

The default property if 'value'.

◆ catalogDeepCopy()

sp< Catalog > fe::Catalog::catalogDeepCopy ( void )

Returns a duplicate of the catalog.

All values are also copied by assignment.

◆ catalogDump()

void fe::Catalog::catalogDump ( void ) const

Print a description of the catalog to the log.

◆ cataloged()

BWORD fe::Catalog::cataloged	(	String	a_name,
		String	a_property = `"value"`
	)		const

inline

Returns TRUE if the given property for the given name has been created.

The default property is 'value'.

◆ catalogedAny()

BWORD fe::Catalog::catalogedAny ( String a_name ) const

inline

Returns TRUE if any property for the given name has been created.

◆ catalogInstance() [1/2]

Instance & fe::Catalog::catalogInstance	(	Instance &	instance,
		String	a_name,
		String	a_property = `"value"`
	)

inline

Returns the literal Instance of the given property for the given name.

Regardless of whether the entry previously existed, it is replaced by the given Instance.

The default property is 'value'.

Referenced by fe::StateCatalog::overlayState().

◆ catalogInstance() [2/2]

Instance & fe::Catalog::catalogInstance	(	String	a_name,
		String	a_property = `"value"`
	)

inline

Returns the literal Instance of the given property for the given name.

If the entry does not exist, it will be created.

The default property is 'value'.

◆ catalogKey()

String fe::Catalog::catalogKey ( U32 index ) const

Returns a key by ordered index.

By default, keys are index in creation order.

◆ catalogKeys()

void fe::Catalog::catalogKeys	(	Array< String > &	a_keys,
		String	a_pattern = `".*"`
	)		const

Returns keys in order of creation.

Keys are appended to the given array. Clear the array if only want new values.

If a regex pattern is given, only matching keys are returned.

Future improvements may allow reordering.

References fe::String::c_str().

Referenced by fe::StateCatalog::getStateKeys(), and fe::StateCatalog::overlayState().

◆ catalogLookup()

bool fe::Catalog::catalogLookup	(	const String	a_name,
		String	a_property,
		Instance &	a_instance
	)		const

Gets the Instance of an existing catalog entry, if it exists.

If entry does not exist, the method return false.

The default property is 'value'.

◆ catalogMoveToEnd()

void fe::Catalog::catalogMoveToEnd ( String a_name )

inline

Move all properties for name to bottom.

◆ catalogOrDefault()

template<class T >

const T & fe::Catalog::catalogOrDefault	(	String	a_name,
		String	a_property,
		const T &	a_default
	)		const

Returns existing catalog entry if already set or default if not.

If entry does not exist, this version will not create an entry and simply return the given default.

The default property is 'value'.

◆ catalogOrException()

template<class T >

T & fe::Catalog::catalogOrException	(	String	a_name,
		String	a_property
	)		const

Returns an existing catalog entry, if it exists.

If entry does not exist, this version will throw an exception.

The default property is 'value'.

◆ catalogOverlay()

void fe::Catalog::catalogOverlay	(	sp< Catalog >	a_spOtherCatalog,
		Array< String > *	a_pTypeList = `NULL`,
		BWORD	a_shallow = `FALSE`
	)

Duplicates entries from another catalog.

Optionally, a list of type names limits which entries are copied.

◆ catalogProperties()

void fe::Catalog::catalogProperties	(	String	a_name,
		Array< String > &	a_properties
	)		const

Returns properties for a key.

Properties are appended to the given array. Clear the array if only want new values.

Order is arbitrary.

Referenced by fe::StateCatalog::getStateProperties(), fe::StateCatalog::overlayState(), and fe::StateCatalog::removeState().

◆ catalogRemove() [1/2]

void fe::Catalog::catalogRemove ( String a_name )

inline

Remove all properties for a name.

Referenced by fe::StateCatalog::removeState().

◆ catalogRemove() [2/2]

void fe::Catalog::catalogRemove	(	String	a_name,
		String	a_property
	)

inline

Remove one property for a name.

◆ catalogSet() [1/3]

BWORD fe::Catalog::catalogSet	(	String	a_name,
		String	a_property,
		String	a_value
	)

Sets the value for a catalog entry, converted to the existing type, from a given String.

If entry does not exist, it is not created.

The default property is 'value'.

◆ catalogSet() [2/3]

BWORD fe::Catalog::catalogSet	(	String	a_name,
		String	a_property,
		String	a_type,
		String	a_value,
		Instance **	a_ppInstance = `NULL`
	)

Sets the value for a catalog entry, converted to the existing type, from a given String.

If entry does not exist, it is created using the named type.

If the Instance pointer pointer is not null. the contained pointer is set to point to the instance. This can save the time of immediately doing another map lookup, if you need the instance.

◆ catalogSet() [3/3]

BWORD fe::Catalog::catalogSet	(	String	a_name,
		String	a_property,
		String	a_type,
		const U8 *	a_pRawBytes,
		I32	a_byteCount,
		Instance **	a_ppInstance = `NULL`
	)

Sets the value for a catalog entry, using a raw byte block.

If entry does not exist, it is created.

If the Instance pointer pointer is not null. the contained pointer is set to point to the instance. This can save the time of immediately doing another map lookup, if you need the instance.

◆ catalogShallowCopy()

sp< Catalog > fe::Catalog::catalogShallowCopy ( void )

Returns a mirror of the catalog.

All values shared references with the original.

◆ catalogSize()

U32 fe::Catalog::catalogSize ( void ) const

Returns the number of name keys.

Each name key may have any number of properties.

◆ catalogTypeInfo()

const fe_type_info & fe::Catalog::catalogTypeInfo	(	String	a_name,
		String	a_property = `"value"`
	)		const

inline

Returns the type_info of the given property for the given name.

If the entry does not exist, it will be created.

The default property is 'value'.

◆ catalogTypeIs()

template<class T >

BWORD fe::Catalog::catalogTypeIs	(	String	a_name,
		String	a_property = `"value"`
	)		const

inline

Returns TRUE if given catalog entry match the template type.

◆ catalogTypeName()

const String fe::Catalog::catalogTypeName	(	String	a_name,
		String	a_property = `"value"`
	)		const

inline

Returns the type name of the given property, determined by the TypeMaster.

If the entry does not exist, it will be created.

The default property is 'value'.

Referenced by fe::StateCatalog::getTypeName(), and fe::StateCatalog::getTypeNameUnsafe().

◆ catalogValue()

String fe::Catalog::catalogValue	(	String	a_name,
		String	a_property = `"value"`
	)		const

Returns existing catalog entry, converted to a String.

If entry does not exist, an empty String is returned.

The default property is 'value'.

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ catalog() [1/2]

◆ catalog() [2/2]

◆ catalogBytes()

◆ catalogClear()

◆ catalogComponent() [1/2]

◆ catalogComponent() [2/2]

◆ catalogDeepCopy()

◆ catalogDump()

◆ cataloged()

◆ catalogedAny()

◆ catalogInstance() [1/2]

◆ catalogInstance() [2/2]

◆ catalogKey()

◆ catalogKeys()

◆ catalogLookup()

◆ catalogMoveToEnd()

◆ catalogOrDefault()

◆ catalogOrException()

◆ catalogOverlay()

◆ catalogProperties()

◆ catalogRemove() [1/2]

◆ catalogRemove() [2/2]

◆ catalogSet() [1/3]

◆ catalogSet() [2/3]

◆ catalogSet() [3/3]

◆ catalogShallowCopy()

◆ catalogSize()

◆ catalogTypeInfo()

◆ catalogTypeIs()

◆ catalogTypeName()

◆ catalogValue()
