Record "type" definition. More...

#include <LayoutSB.h>

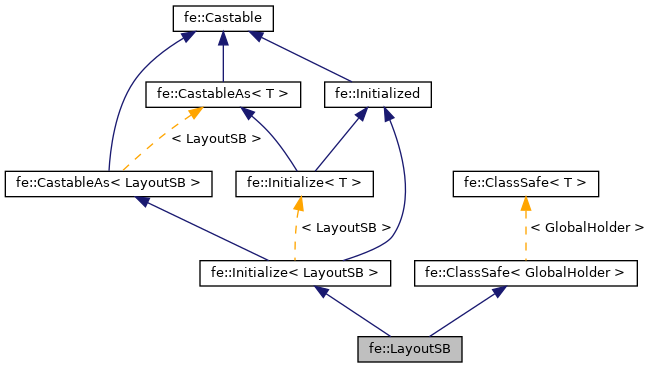

Inheritance diagram for fe::LayoutSB:

[legend]

Public Types
typedef FE_UWORD	Offset

Public Member Functions
	LayoutSB (sp< Scope > &scope)

	LayoutSB (sp< Scope > &scope, const String &name)

	LayoutSB (Scope *pScope, const String &name)

LayoutSB &	copy (const LayoutSB &other)

virtual void	initialize (void)

virtual void	populate (const String &attribute_name)
	Convienience function to Scope::populate. More...

virtual void	populate (const String &attribute_name, const String &attribute_type)
	Convienience function to Scope::populate. More...

virtual void	populate (const BaseAccessor &accessor)
	Convienience function to Scope::populate. More...

virtual void	populate (sp< Attribute > spAttribute)
	Convienience function to Scope::populate. More...

void	populate (sp< LayoutSB > spLayoutSB)
	Convienience function to Scope::populate. More...

virtual void	setName (const String &name)

virtual const String &	name (void) const

virtual const String	verboseName (void) const

virtual void	setConstruct (bool construct)

virtual const bool &	construct (void) const

virtual hp< Scope > &	scope (void)

virtual void	peek (Peeker &peeker)

virtual FE_UWORD	attributeCount (void) const

virtual sp< Attribute >	attribute (FE_UWORD localIndex)

RecordSB	createRecord (void)

virtual bool	checkAttribute (FE_UWORD aLocator) const

virtual bool	checkAttributeStr (const String &a_name)

virtual void	resizeLocatorTable (FE_UWORD aSize)

void	createRecord (RecordSB &r_new)

void	freeRecord (RecordSB &r_old)

virtual void	notifyOfAttributeChange (sp< Depend > &depend)

Public Member Functions inherited from fe::Initialized
void	initializeAll (void)

void	setActive (bool a_active)

Static Public Attributes
static const FE_DL_PUBLIC Offset	offsetNone = 0xFFFFFFFF

Private Member Functions
	LayoutSB (const LayoutSB &other)

LayoutSB &	operator= (const LayoutSB &other)

void	setOffsetTable (Offset *offset_table)

const Offset *	offsetTable (void) const

const Offset *	rawOffsetTable (void) const

void	setSize (const FE_UWORD record_size)

FE_UWORD	size (void) const
	Size of an instance of the layout. More...

void	setLocked (bool locked)

const bool &	locked (void) const

void	lock (void)

void	depAttributeCheck (sp< Depend > &depend)

void	depRecordCheck (sp< Depend > &depend)

void	constructAttributes (void *stateBlock)

void	destructAttributes (void *stateBlock)

void	constructor (sp< Scope > &scope)

void	cacheIndices (void)

void	setOffset (const FE_UWORD index, const Offset offset)

unsigned int	serialIndex (void) const

Private Attributes
String	m_name

bool	m_init

bool	m_construct

bool	m_suppressLock

Offset *	m_pTable

Offset	m_size

hp< Scope >	m_hpScope

std::vector< FE_UWORD >	m_offsetIndex

sp< StoreI >	m_store

sp< OffsetTable >	m_offsetTable

unsigned int	m_serialIndex

Friends
class	RecordSB

class	WeakRecordSB

class	RecordArraySB

class	SegmentStore

class	LayoutSB::OffsetTable

Additional Inherited Members
Protected Types inherited from fe::Initialized
typedef void(*	InitializeFunction) (Initialized *)

Protected Member Functions inherited from fe::Initialized
void	addInitializer (InitializeFunction function)

Detailed Description

Record "type" definition.

A Layout is a definition of Attribute layout in Record instances.

Layout objects can only be created via a Scope. For typical use all operations on Layout objects are also done through Scope methods.

Todo:: full data system guide

Member Function Documentation

◆ populate() [1/5]

void fe::LayoutSB::populate ( const String & attribute_name )

virtual

Convienience function to Scope::populate.

◆ populate() [2/5]

void fe::LayoutSB::populate	(	const String &	attribute_name,
		const String &	attribute_type
	)

virtual

Convienience function to Scope::populate.

◆ populate() [3/5]

void fe::LayoutSB::populate ( const BaseAccessor & accessor )

virtual

Convienience function to Scope::populate.

This particular one does a check if the layout is locked and if so verifys the exsitence of the attribute.

◆ populate() [4/5]

void fe::LayoutSB::populate ( sp< Attribute > spAttribute )

virtual

Convienience function to Scope::populate.

◆ populate() [5/5]

void fe::LayoutSB::populate ( sp< LayoutSB > spLayoutSB )

Convienience function to Scope::populate.

◆ size()

FE_UWORD fe::LayoutSB::size ( void ) const

inlineprivate

Size of an instance of the layout.

The documentation for this class was generated from the following files:
