fe::StateCatalog::Snapshot Class Reference

A fixed copy of state from a StateCatalog. More...

#include <StateCatalog.h>

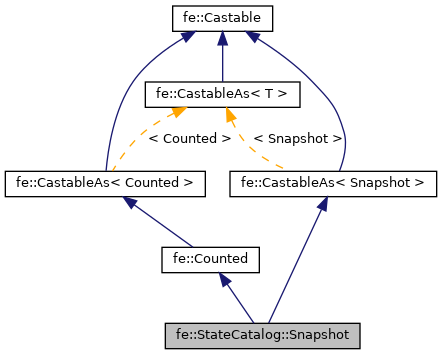

Inheritance diagram for fe::StateCatalog::Snapshot:

Public Member Functions
Result	getTypeName (String a_name, String &a_rTypeName) const
	Get state without any need for locking (default property) More...
Result	getTypeName (String a_name, String a_property, String &a_rTypeName) const
	Get state without any need for locking. More...
template<class T >
Result	getState (String a_name, T &a_rValue) const
	Get historical state without any need for locking. More...
template<class T >
Result	getState (String a_name, String a_property, T &a_rValue) const
	Get historical state without any need for locking. More...
void	dump (void) const
	Print all the values in the snapshot. More...
void	dumpUpdates (void) const
	Print new state changes since the snapshot. More...
I32	serial (void) const
	Get the change count from when the snapshot was made. More...
I32	flushCount (void) const
	Get the count of incoming updates from when the snapshot was made. More...
Public Member Functions inherited from fe::Counted
virtual void	acquire (void)
	Increment the reference count. More...
virtual void	acquire (int &rCount)
	Increment the reference count (and get the count) More...
virtual void	release (void)
	Decrement the reference count. More...
virtual void	abandon (void)
	Decrement the reference count. More...
int	count (void) const
	Return the count of references. More...
void	setName (const String &)
void	trackReference (void *pReference, String what)
void	untrackReference (void *pReference)
void	registerRegion (void *pT, U32 bytes)

Private Attributes
I32	m_serial
I32	m_flushCount
sp< Catalog >	m_spSnapshotCatalog
sp< Catalog >	m_spUpdateCatalog

Friends
class	StateCatalog

Additional Inherited Members
Static Public Member Functions inherited from fe::Counted
static String	reportTracker (void)
static U32	trackerCount (void)
Protected Member Functions inherited from fe::Counted
int	releaseInternal (void)
	Decrement the reference count. More...
void	suppressReport (void)

Detailed Description

A fixed copy of state from a StateCatalog.

The state of a snapshot is frozen and can not be changed. Unlike the Atomic, a Snapshot does not lock the StateCatalog.

Member Function Documentation

dump()

void fe::StateCatalog::Snapshot::dump ( void  ) const

inline

Print all the values in the snapshot.

dumpUpdates()

void fe::StateCatalog::Snapshot::dumpUpdates ( void  ) const

inline

Print new state changes since the snapshot.

flushCount()

I32 fe::StateCatalog::Snapshot::flushCount ( void  ) const

inline

Get the count of incoming updates from when the snapshot was made.

An increment of the flushCount corresponds to one flush() call at the sender. Multiple states can be updated on one flush.

getState() [1/2]

template<class T >

Result fe::StateCatalog::Snapshot::getState ( String  a_name, T &  a_rValue  ) const

inline

Get historical state without any need for locking.

getState() [2/2]

template<class T >

Result fe::StateCatalog::Snapshot::getState ( String  a_name, String  a_property, T &  a_rValue  ) const

inline

Get historical state without any need for locking.

getTypeName() [1/2]

Result fe::StateCatalog::Snapshot::getTypeName ( String  a_name, String &  a_rTypeName  ) const

inline

Get state without any need for locking (default property)

getTypeName() [2/2]

Result fe::StateCatalog::Snapshot::getTypeName	(	String	a_name,
		String	a_property,
		String &	a_rTypeName
	)		const

Get state without any need for locking.

serial()

I32 fe::StateCatalog::Snapshot::serial ( void  ) const

inline

Get the change count from when the snapshot was made.

The StateCatalog keeps an serial count of how many state changes have occured. Each Snapshot taken stores this serial number, which can be used to compare to other snapshots of the same StateCatalog.

Referenced by fe::StateCatalog::snapshot().

---

The documentation for this class was generated from the following files:

• StateCatalog.h
• StateCatalog.cc
