Draw nothing for DrawI, elegantly. More...

#include <DrawNull.h>

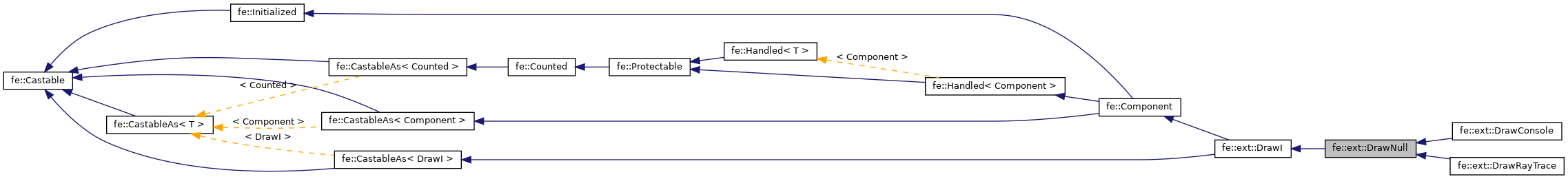

Inheritance diagram for fe::ext::DrawNull:

[legend]

Public Member Functions
virtual BWORD	isDirect (void) const
	Returns TRUE is display is local and rendered directly. More...

virtual void	setDrawMode (sp< DrawMode > spDrawMode)
	Set rendering mode. More...

virtual sp< DrawMode >	drawMode (void) const
	Get rendering mode. More...

virtual void	pushDrawMode (sp< DrawMode > mode)
	Push rendering mode onto stack. More...

virtual sp< DrawMode >	popDrawMode (void)
	Pop rendering mode from stack. More...

virtual void	pushMatrixState (void)
	Push transform matrices. More...

virtual void	popMatrixState (void)
	Pop transform matrices. More...

virtual void	pushMatrix (MatrixMode a_mode, Real a_values[16])
	push a new 4x4 matrix on a particular stack More...

virtual void	popMatrix (MatrixMode a_mode)
	pop the top 4x4 matrix from a particular stack More...

virtual void	unbindVertexArray (void)
	currently, sets vertex array to zero in OpenGL More...

virtual void	setBrightness (Real a_brightness)
	set additive lightening More...

virtual Real	brightness (void)
	get lightening More...

virtual void	setContrast (Real a_contrast)
	set multiplicitive light scaling More...

virtual Real	contrast (void)
	get light scaling More...

virtual void	setView (sp< ViewI > spViewI)
	Set current view. More...

virtual sp< ViewI >	view (void) const
	Get current view. More...

virtual void	setDrawChain (sp< DrawI > a_spDrawI)
	Set next DrawI in a chain. More...

virtual sp< DrawI >	drawChain (void)

virtual void	setTransform (const SpatialTransform &a_rTransform)
	Impose a spatial translation. More...

virtual void	flush (void)
	Called once after each frame. More...

virtual void	flushLive (void)
	Pass on current input data as is. More...

virtual void	clearInput (void)
	Reset the current input queue. More...

virtual BWORD	empty (void) const
	Returns TRUE if the current input queue is empty. More...

virtual sp< FontI >	font (void)
	Get current font. More...

virtual Real	multiplication (void)
	Select the GL-specific index/handle. More...

virtual void	drawPoints (const SpatialVector vertex, const SpatialVector normal, U32 vertices, BWORD multicolor, const Color *color)
	Draw points vertex[vertices]. More...

virtual void	drawPoints (const SpatialVector vertex, const SpatialVector normal, U32 vertices, BWORD multicolor, const Color *color, sp< DrawBufferI > spDrawBuffer)

virtual void	drawLines (const SpatialVector vertex, const SpatialVector normal, U32 vertices, StripMode strip, BWORD multicolor, const Color *color)
	Draw lines. More...

virtual void	drawLines (const SpatialVector vertex, const SpatialVector normal, U32 vertices, StripMode strip, BWORD multicolor, const Color color, BWORD multiradius, const Real radius, const Vector3i *element, U32 elementCount, sp< DrawBufferI > spDrawBuffer)

virtual void	drawCurve (const SpatialVector vertex, const SpatialVector normal, const Real radius, U32 vertices, BWORD multicolor, const Color color)
	Draw one curve. More...

virtual void	drawTriangles (const SpatialVector vertex, const SpatialVector normal, const Vector2 texture, U32 vertices, StripMode strip, BWORD multicolor, const Color color)
	Draw triangles. More...

virtual void	drawTriangles (const SpatialVector vertex, const SpatialVector normal, const Vector2 texture, U32 vertices, StripMode strip, BWORD multicolor, const Color color, const Array< I32 > vertexMap, const Array< I32 > hullPointMap, const Array< Vector4i > *hullFacePoint, sp< DrawBufferI > spDrawBuffer)

virtual void	drawRectangles (const SpatialVector vertex, U32 vertices, BWORD multicolor, const Color color)
	Draw rectangles. More...

virtual void	draw (cp< DrawableI > cpDrawableI, const Color *color)
	Draw DrawableI. More...

virtual void	draw (cp< DrawableI > cpDrawableI, const Color *color, sp< DrawBufferI > spDrawBuffer)

virtual void	drawTransformed (const SpatialTransform &transform, cp< DrawableI > cpDrawableI, const Color *color)

virtual void	drawTransformed (const SpatialTransform &transform, cp< DrawableI > cpDrawableI, const Color *color, sp< DrawBufferI > spDrawBuffer)

virtual void	drawBox (const Box2 &box, const Color &color)
	Draw 2D box. More...

virtual void	drawBox (const Box2i &box, const Color &color)
	Draw 2D box with pixel adjustments. More...

virtual void	drawBox (const Box3 &box, const Color &color)
	Draw 3D box. More...

virtual void	drawAlignedText (const SpatialVector &location, const String text, const Color &color)
	Draw screen-aligned single color text. More...

virtual void	drawCircle (const SpatialTransform &transform, const SpatialVector *scale, const Color &color)

virtual void	drawSphere (const SpatialTransform &transform, const SpatialVector *scale, const Color &color)

virtual void	drawCylinder (const SpatialTransform &transform, const SpatialVector *scale, Real baseScale, const Color &color, U32 slices)
	Draw a transformed cylinder or cone. More...

virtual void	drawCylinder (const SpatialVector &location1, const SpatialVector &location2, Real radius1, Real radius2, const Color &color, U32 slices)

virtual void	drawCylinders (const SpatialTransform transform, const SpatialVector scale, const Real baseScale, const U32 slices, U32 cylinders, BWORD multicolor, const Color *color)

virtual void	drawTransformedCylinders (const SpatialTransform &pretransform, const SpatialTransform transform, const SpatialVector scale, const Real baseScale, const U32 slices, U32 cylinders, BWORD multicolor, const Color *color)

virtual void	drawArc (const SpatialTransform &transform, const SpatialVector *scale, Real startangle, Real endangle, const Color &color)

virtual void	drawTransformedPoints (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, U32 vertices, BWORD multicolor, const Color color)

virtual void	drawTransformedPoints (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, U32 vertices, BWORD multicolor, const Color color, sp< DrawBufferI > spDrawBuffer)

virtual void	drawTransformedLines (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, U32 vertices, StripMode strip, BWORD multicolor, const Color color)

virtual void	drawTransformedLines (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, U32 vertices, StripMode strip, BWORD multicolor, const Color color, BWORD multiradius, const Real radius, const Vector3i element, U32 elementCount, sp< DrawBufferI > spDrawBuffer)

virtual void	drawTransformedCurve (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, const Real radius, U32 vertices, BWORD multicolor, const Color *color)

virtual void	drawTransformedTriangles (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, const Vector2 texture, U32 vertices, StripMode strip, BWORD multicolor, const Color *color)

virtual void	drawTransformedTriangles (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, const Vector2 texture, U32 vertices, StripMode strip, BWORD multicolor, const Color color, const Array< I32 > vertexMap, const Array< I32 > hullPointMap, const Array< Vector4i > hullFacePoint, sp< DrawBufferI > spDrawBuffer)

virtual void	drawTransformedBox (const SpatialTransform &transform, const Box3 &box, const Color &color)

virtual void	drawTransformedBoxes (const SpatialTransform transform, const SpatialVector scale, U32 boxes, BWORD multicolor, const Color *color)

virtual void	drawAxes (Real scale)

virtual void	drawTransformedAxes (const SpatialTransform &transform, Real scale)

virtual void	drawMarker (Real radius, const Color &color)

virtual void	drawTransformedMarker (const SpatialTransform &transform, Real radius, const Color &color)

virtual void	drawRaster (sp< ImageI > spImageI, const SpatialVector &location)

virtual sp< DrawBufferI >	createBuffer (void)

Public Member Functions inherited from fe::Component
const String &	name (void) const
	Return the components chosen name. More...

const String	verboseName (void) const
	Return the annotated chosen name. More...

void	setName (const String &name)
	Rename the component to anything you want. More...

hp< Registry >	registry (void) const
	Get the Registry that created this component. More...

void	adjoin (sp< Component > spComponent)
	Tie this component's lifetime to another. More...

sp< Component >	create (const String &implementation, BWORD quiet=FALSE) const
	Convienience function to registry()->create() More...

void	disjoin (void)
	Untie component from Hub, if connected. More...

String	factoryName (void)

void	setLibrary (sp< Library > spLibrary)
	Store a reference to the library used to instantiate this component. More...

sp< Library >	library (void)
	Get the library that created the component. More...

void	setFactoryIndex (I32 a_factoryIndex)
	Set the library's factory index. More...

I32	factoryIndex (void)
	Get the library's factory index. More...

void	setSingleton (BWORD set)
	Specify whether component is a singleton. More...

BWORD	isSingleton (void)
	Return whether component is a singleton. More...

virtual void	acquire (void)
	Specialized reference increment. More...

virtual void	release (void)
	Specialized reference decrement. More...

Public Member Functions inherited from fe::Handled< Component >
const hp< Component > &	getHandle (void) const
	Get a safe handle to this object. More...

Public Member Functions inherited from fe::Protectable
virtual I32	protection (void) const

virtual void	protect (void)

virtual void	unprotect (void)

virtual Protectable *	clone (Protectable *pInstance=NULL)

Public Member Functions inherited from fe::Counted
virtual void	acquire (int &rCount)
	Increment the reference count (and get the count) More...

virtual void	abandon (void)
	Decrement the reference count. More...

int	count (void) const
	Return the count of references. More...

void	setName (const String &)

void	trackReference (void *pReference, String what)

void	untrackReference (void *pReference)

void	registerRegion (void *pT, U32 bytes)

Public Member Functions inherited from fe::Initialized
void	initializeAll (void)

void	setActive (bool a_active)

Additional Inherited Members
Public Types inherited from fe::ext::DrawI
enum	StripMode { e_discrete, e_strip, e_fan, e_triple }
	Format of vertices for tri-stripping. More...

enum	MatrixMode { e_modelview, e_projection, e_texture, e_color }

Static Public Member Functions inherited from fe::Counted
static String	reportTracker (void)

static U32	trackerCount (void)

Protected Types inherited from fe::Initialized
typedef void(*	InitializeFunction) (Initialized *)

Protected Member Functions inherited from fe::Handled< Component >
void	abandonHandle (void)

Protected Member Functions inherited from fe::Counted
int	releaseInternal (void)
	Decrement the reference count. More...

void	suppressReport (void)

Protected Member Functions inherited from fe::Initialized
void	addInitializer (InitializeFunction function)

Related Functions inherited from fe::Component
FE_DL_EXPORT void FE_CDECL	checkUnload (sp< Library > &pLibrary, Component *pComponent=NULL)
	Delete the component and unload libraries where appropriate. More...

Detailed Description

Draw nothing for DrawI, elegantly.

Member Function Documentation

◆ brightness()

virtual Real fe::ext::DrawNull::brightness ( void )

inlinevirtual

get lightening

Implements fe::ext::DrawI.

◆ clearInput()

virtual void fe::ext::DrawNull::clearInput ( void )

inlinevirtual

Reset the current input queue.

Implements fe::ext::DrawI.

Reimplemented in fe::ext::DrawRayTrace.

◆ contrast()

virtual Real fe::ext::DrawNull::contrast ( void )

inlinevirtual

get light scaling

Implements fe::ext::DrawI.

◆ draw()

virtual void fe::ext::DrawNull::draw	(	cp< DrawableI >	cpDrawableI,
		const Color *	color
	)

inlinevirtual

Draw DrawableI.

If color is NULL, the surface is expected to use its own color data.

Implements fe::ext::DrawI.

Reimplemented in fe::ext::DrawRayTrace.

Referenced by fe::ext::DrawRayTrace::drawCylinder().

◆ drawAlignedText()

virtual void fe::ext::DrawNull::drawAlignedText	(	const SpatialVector &	location,
		const String	text,
		const Color &	color
	)

inlinevirtual

Draw screen-aligned single color text.

Text is drawn at the given location, transformed and projected by the current state of the underlying graphics system.

Implements fe::ext::DrawI.

Reimplemented in fe::ext::DrawRayTrace, and fe::ext::DrawConsole.

◆ drawBox() [1/3]

virtual void fe::ext::DrawNull::drawBox	(	const Box2 &	box,
		const Color &	color
	)

inlinevirtual

Draw 2D box.

Implements fe::ext::DrawI.

◆ drawBox() [2/3]

virtual void fe::ext::DrawNull::drawBox	(	const Box2i &	box,
		const Color &	color
	)

inlinevirtual

Draw 2D box with pixel adjustments.

Implements fe::ext::DrawI.

◆ drawBox() [3/3]

virtual void fe::ext::DrawNull::drawBox	(	const Box3 &	box,
		const Color &	color
	)

inlinevirtual

Draw 3D box.

Implements fe::ext::DrawI.

◆ drawCurve()

virtual void fe::ext::DrawNull::drawCurve	(	const SpatialVector *	vertex,
		const SpatialVector *	normal,
		const Real *	radius,
		U32	vertices,
		BWORD	multicolor,
		const Color *	color
	)

inlinevirtual

Draw one curve.

Uses vertices and colors as explained in drawPoints.

This is similar to drawLines in strip mode and with a radius property.

Implements fe::ext::DrawI.

◆ drawCylinder()

virtual void fe::ext::DrawNull::drawCylinder	(	const SpatialTransform &	transform,
		const SpatialVector *	scale,
		Real	baseScale,
		const Color &	color,
		U32	slices
	)

inlinevirtual

Draw a transformed cylinder or cone.

The baseScale is a additional scale at the base of the cylinder. For a cone, specify a baseScale of 0.

Implements fe::ext::DrawI.

Reimplemented in fe::ext::DrawRayTrace, and fe::ext::DrawConsole.

◆ drawLines()

virtual void fe::ext::DrawNull::drawLines	(	const SpatialVector *	vertex,
		const SpatialVector *	normal,
		U32	vertices,
		StripMode	strip,
		BWORD	multicolor,
		const Color *	color
	)

inlinevirtual

Draw lines.

Uses vertices and colors as explained in drawPoints.

If strip is DrawI::e_strip, vertices are contiguous with vertices-1 segments, else vertices are independent pairs with vertices/2 segments.

Implements fe::ext::DrawI.

◆ drawMode()

virtual sp<DrawMode> fe::ext::DrawNull::drawMode ( void ) const

inlinevirtual

Get rendering mode.

Implements fe::ext::DrawI.

◆ drawPoints()

virtual void fe::ext::DrawNull::drawPoints	(	const SpatialVector *	vertex,
		const SpatialVector *	normal,
		U32	vertices,
		BWORD	multicolor,
		const Color *	color
	)

inlinevirtual

Draw points vertex[vertices].

The array vertex is assumed to contain vertices elements. If multicolor, points are independently colored with color[vertices], else only color[0] is used. If color is NULL, no colors are specified, so the current color state is left in effect.

Implements fe::ext::DrawI.

◆ drawRectangles()

virtual void fe::ext::DrawNull::drawRectangles	(	const SpatialVector *	vertex,
		U32	vertices,
		BWORD	multicolor,
		const Color *	color
	)

inlinevirtual

Draw rectangles.

Uses vertices and colors as explained in drawPoints.

Rectangles are never stripped.

Implements fe::ext::DrawI.

◆ drawTriangles()

virtual void fe::ext::DrawNull::drawTriangles	(	const SpatialVector *	vertex,
		const SpatialVector *	normal,
		const Vector2 *	texture,
		U32	vertices,
		StripMode	strip,
		BWORD	multicolor,
		const Color *	color
	)

inlinevirtual

Draw triangles.

Uses vertices and colors as explained in drawPoints.

Normals are treated the same as vertices. If strip is DrawI::e_strip, vertices are tri-striped with vertices-2 triangles, else vertices are independent triplets with vertices/3 triangles.

Implements fe::ext::DrawI.

◆ empty()

virtual BWORD fe::ext::DrawNull::empty ( void ) const

inlinevirtual

Returns TRUE if the current input queue is empty.

Implements fe::ext::DrawI.

◆ flush()

virtual void fe::ext::DrawNull::flush ( void )

inlinevirtual

Called once after each frame.

This shifts data access to freeze the current input buffer and prepare a new empty input buffer.

The resulting output buffer is sent on to the next DrawI interface.

Implements fe::ext::DrawI.

Reimplemented in fe::ext::DrawRayTrace, and fe::ext::DrawConsole.

◆ flushLive()

virtual void fe::ext::DrawNull::flushLive ( void )

inlinevirtual

Pass on current input data as is.

This sends the current input to the next DrawI interface without shifting buffers. The same input can still be written to afterwards.

Implements fe::ext::DrawI.

Reimplemented in fe::ext::DrawRayTrace.

◆ font()

virtual sp<FontI> fe::ext::DrawNull::font ( void )

inlinevirtual

Get current font.

Implements fe::ext::DrawI.

◆ isDirect()

virtual BWORD fe::ext::DrawNull::isDirect ( void ) const

inlinevirtual

Returns TRUE is display is local and rendered directly.

Implements fe::ext::DrawI.

◆ multiplication()

virtual Real fe::ext::DrawNull::multiplication ( void )

inlinevirtual

Select the GL-specific index/handle.

An index of 0 indicates no font. upscaling preference, such as for high DPI

Implements fe::ext::DrawI.

◆ popDrawMode()

virtual sp<DrawMode> fe::ext::DrawNull::popDrawMode ( void )

inlinevirtual

Pop rendering mode from stack.

Implements fe::ext::DrawI.

◆ popMatrix()

virtual void fe::ext::DrawNull::popMatrix ( MatrixMode a_mode )

inlinevirtual

pop the top 4x4 matrix from a particular stack

Implements fe::ext::DrawI.

◆ popMatrixState()

virtual void fe::ext::DrawNull::popMatrixState ( void )

inlinevirtual

Pop transform matrices.

Implements fe::ext::DrawI.

◆ pushDrawMode()

virtual void fe::ext::DrawNull::pushDrawMode ( sp< DrawMode > mode )

inlinevirtual

Push rendering mode onto stack.

Implements fe::ext::DrawI.

◆ pushMatrix()

virtual void fe::ext::DrawNull::pushMatrix	(	MatrixMode	a_mode,
		Real	a_values[16]
	)

inlinevirtual

push a new 4x4 matrix on a particular stack

Implements fe::ext::DrawI.

◆ pushMatrixState()

virtual void fe::ext::DrawNull::pushMatrixState ( void )

inlinevirtual

Push transform matrices.

Implements fe::ext::DrawI.

◆ setBrightness()

virtual void fe::ext::DrawNull::setBrightness ( Real a_brightness )

inlinevirtual

set additive lightening

Implements fe::ext::DrawI.

◆ setContrast()

virtual void fe::ext::DrawNull::setContrast ( Real a_contrast )

inlinevirtual

set multiplicitive light scaling

Implements fe::ext::DrawI.

◆ setDrawChain()

virtual void fe::ext::DrawNull::setDrawChain ( sp< DrawI > a_spDrawI )

inlinevirtual

Set next DrawI in a chain.

If this DrawI is designed to pass drawing commands to another DrawI, such as for conversion or caching, this commands specifies that next component.

Any implementation may ignore this request.

Implements fe::ext::DrawI.

Reimplemented in fe::ext::DrawRayTrace.

◆ setDrawMode()

virtual void fe::ext::DrawNull::setDrawMode ( sp< DrawMode > mode )

inlinevirtual

Set rendering mode.

Implements fe::ext::DrawI.

◆ setTransform()

virtual void fe::ext::DrawNull::setTransform ( const SpatialTransform & a_rTransform )

inlinevirtual

Impose a spatial translation.

If supported, this adjusts the output in an implementation-specific manner.

Any implementation may ignore this request or just use part of the transform, such as translation only.

Implements fe::ext::DrawI.

Reimplemented in fe::ext::DrawRayTrace.

◆ setView()

virtual void fe::ext::DrawNull::setView ( sp< ViewI > spViewI )

inlinevirtual

Set current view.

Implements fe::ext::DrawI.

◆ unbindVertexArray()

virtual void fe::ext::DrawNull::unbindVertexArray ( void )

inlinevirtual

currently, sets vertex array to zero in OpenGL

Implements fe::ext::DrawI.

◆ view()

virtual sp<ViewI> fe::ext::DrawNull::view ( void ) const

inlinevirtual

Get current view.

Implements fe::ext::DrawI.

Reimplemented in fe::ext::DrawRayTrace.

Referenced by fe::ext::DrawOpenGL::flush().

The documentation for this class was generated from the following file:

DrawNull.h

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ brightness()

◆ clearInput()

◆ contrast()

◆ draw()

◆ drawAlignedText()

◆ drawBox() [1/3]

◆ drawBox() [2/3]

◆ drawBox() [3/3]

◆ drawCurve()

◆ drawCylinder()

◆ drawLines()

◆ drawMode()

◆ drawPoints()

◆ drawRectangles()

◆ drawTriangles()

◆ empty()

◆ flush()

◆ flushLive()

◆ font()

◆ isDirect()

◆ multiplication()

◆ popDrawMode()

◆ popMatrix()

◆ popMatrixState()

◆ pushDrawMode()

◆ pushMatrix()

◆ pushMatrixState()

◆ setBrightness()

◆ setContrast()

◆ setDrawChain()

◆ setDrawMode()

◆ setTransform()

◆ setView()

◆ unbindVertexArray()

◆ view()
