Ray-tracing implementation for DrawI. More...

#include <DrawRayTrace.h>

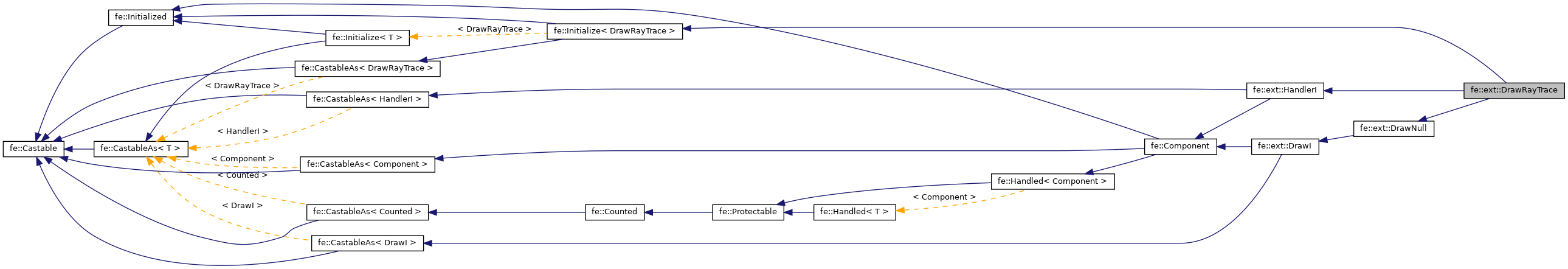

Inheritance diagram for fe::ext::DrawRayTrace:

[legend]

Public Member Functions
void	initialize (void)

virtual void	handle (Record &record)

virtual sp< ViewI >	view (void) const
	Get current view. More...

virtual void	setTransform (const SpatialTransform &a_rTransform)
	Impose a spatial translation. More...

virtual void	setDrawChain (sp< DrawI > a_spDrawI)
	Set next DrawI in a chain. More...

virtual void	flush (void)
	Called once after each frame. More...

virtual void	flushLive (void)
	Pass on current input data as is. More...

virtual void	clearInput (void)
	Reset the current input queue. More...

virtual void	drawSphere (const SpatialTransform &transform, const SpatialVector *scale, const Color &color)

virtual void	drawCircle (const SpatialTransform &transform, const SpatialVector *scale, const Color &color)

virtual void	drawCylinder (const SpatialTransform &transform, const SpatialVector *scale, Real baseScale, const Color &color, U32 slices)
	Draw a transformed cylinder or cone. More...

virtual void	drawCylinder (const SpatialVector &location1, const SpatialVector &location2, Real radius1, Real radius2, const Color &color, U32 slices)

virtual void	drawDisk (const SpatialVector &center, const SpatialVector &facing, Real radius, const Color &color, U32 slices)

virtual void	draw (cp< DrawableI > cpDrawableI, const Color *color)
	Draw DrawableI. More...

virtual void	drawTransformed (const SpatialTransform &transform, cp< DrawableI > cpDrawableI, const Color *color)

virtual void	drawAxes (Real scale)

virtual void	drawTransformedMarker (const SpatialTransform &transform, Real radius, const Color &color)

virtual void	drawAlignedText (const SpatialVector &location, const String text, const Color &color)
	Draw screen-aligned single color text. More...

void	clearObjects (void)

BWORD	rayPick (const SpatialVector &origin, const SpatialVector &direction, Real maxDistance, sp< SurfaceI::ImpactI > &rspImpactI, cp< SurfaceI > &rcpSurfaceI)

Public Member Functions inherited from fe::Initialized
void	initializeAll (void)

void	setActive (bool a_active)

Public Member Functions inherited from fe::ext::DrawNull
virtual BWORD	isDirect (void) const
	Returns TRUE is display is local and rendered directly. More...

virtual void	setDrawMode (sp< DrawMode > spDrawMode)
	Set rendering mode. More...

virtual sp< DrawMode >	drawMode (void) const
	Get rendering mode. More...

virtual void	pushDrawMode (sp< DrawMode > mode)
	Push rendering mode onto stack. More...

virtual sp< DrawMode >	popDrawMode (void)
	Pop rendering mode from stack. More...

virtual void	pushMatrixState (void)
	Push transform matrices. More...

virtual void	popMatrixState (void)
	Pop transform matrices. More...

virtual void	pushMatrix (MatrixMode a_mode, Real a_values[16])
	push a new 4x4 matrix on a particular stack More...

virtual void	popMatrix (MatrixMode a_mode)
	pop the top 4x4 matrix from a particular stack More...

virtual void	unbindVertexArray (void)
	currently, sets vertex array to zero in OpenGL More...

virtual void	setBrightness (Real a_brightness)
	set additive lightening More...

virtual Real	brightness (void)
	get lightening More...

virtual void	setContrast (Real a_contrast)
	set multiplicitive light scaling More...

virtual Real	contrast (void)
	get light scaling More...

virtual void	setView (sp< ViewI > spViewI)
	Set current view. More...

virtual sp< DrawI >	drawChain (void)

virtual BWORD	empty (void) const
	Returns TRUE if the current input queue is empty. More...

virtual sp< FontI >	font (void)
	Get current font. More...

virtual Real	multiplication (void)
	Select the GL-specific index/handle. More...

virtual void	drawPoints (const SpatialVector vertex, const SpatialVector normal, U32 vertices, BWORD multicolor, const Color *color)
	Draw points vertex[vertices]. More...

virtual void	drawPoints (const SpatialVector vertex, const SpatialVector normal, U32 vertices, BWORD multicolor, const Color *color, sp< DrawBufferI > spDrawBuffer)

virtual void	drawLines (const SpatialVector vertex, const SpatialVector normal, U32 vertices, StripMode strip, BWORD multicolor, const Color *color)
	Draw lines. More...

virtual void	drawLines (const SpatialVector vertex, const SpatialVector normal, U32 vertices, StripMode strip, BWORD multicolor, const Color color, BWORD multiradius, const Real radius, const Vector3i *element, U32 elementCount, sp< DrawBufferI > spDrawBuffer)

virtual void	drawCurve (const SpatialVector vertex, const SpatialVector normal, const Real radius, U32 vertices, BWORD multicolor, const Color color)
	Draw one curve. More...

virtual void	drawTriangles (const SpatialVector vertex, const SpatialVector normal, const Vector2 texture, U32 vertices, StripMode strip, BWORD multicolor, const Color color)
	Draw triangles. More...

virtual void	drawTriangles (const SpatialVector vertex, const SpatialVector normal, const Vector2 texture, U32 vertices, StripMode strip, BWORD multicolor, const Color color, const Array< I32 > vertexMap, const Array< I32 > hullPointMap, const Array< Vector4i > *hullFacePoint, sp< DrawBufferI > spDrawBuffer)

virtual void	drawRectangles (const SpatialVector vertex, U32 vertices, BWORD multicolor, const Color color)
	Draw rectangles. More...

virtual void	draw (cp< DrawableI > cpDrawableI, const Color *color, sp< DrawBufferI > spDrawBuffer)

virtual void	drawTransformed (const SpatialTransform &transform, cp< DrawableI > cpDrawableI, const Color *color, sp< DrawBufferI > spDrawBuffer)

virtual void	drawBox (const Box2 &box, const Color &color)
	Draw 2D box. More...

virtual void	drawBox (const Box2i &box, const Color &color)
	Draw 2D box with pixel adjustments. More...

virtual void	drawBox (const Box3 &box, const Color &color)
	Draw 3D box. More...

virtual void	drawCylinders (const SpatialTransform transform, const SpatialVector scale, const Real baseScale, const U32 slices, U32 cylinders, BWORD multicolor, const Color *color)

virtual void	drawTransformedCylinders (const SpatialTransform &pretransform, const SpatialTransform transform, const SpatialVector scale, const Real baseScale, const U32 slices, U32 cylinders, BWORD multicolor, const Color *color)

virtual void	drawArc (const SpatialTransform &transform, const SpatialVector *scale, Real startangle, Real endangle, const Color &color)

virtual void	drawTransformedPoints (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, U32 vertices, BWORD multicolor, const Color color)

virtual void	drawTransformedPoints (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, U32 vertices, BWORD multicolor, const Color color, sp< DrawBufferI > spDrawBuffer)

virtual void	drawTransformedLines (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, U32 vertices, StripMode strip, BWORD multicolor, const Color color)

virtual void	drawTransformedLines (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, U32 vertices, StripMode strip, BWORD multicolor, const Color color, BWORD multiradius, const Real radius, const Vector3i element, U32 elementCount, sp< DrawBufferI > spDrawBuffer)

virtual void	drawTransformedCurve (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, const Real radius, U32 vertices, BWORD multicolor, const Color *color)

virtual void	drawTransformedTriangles (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, const Vector2 texture, U32 vertices, StripMode strip, BWORD multicolor, const Color *color)

virtual void	drawTransformedTriangles (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, const Vector2 texture, U32 vertices, StripMode strip, BWORD multicolor, const Color color, const Array< I32 > vertexMap, const Array< I32 > hullPointMap, const Array< Vector4i > hullFacePoint, sp< DrawBufferI > spDrawBuffer)

virtual void	drawTransformedBox (const SpatialTransform &transform, const Box3 &box, const Color &color)

virtual void	drawTransformedBoxes (const SpatialTransform transform, const SpatialVector scale, U32 boxes, BWORD multicolor, const Color *color)

virtual void	drawTransformedAxes (const SpatialTransform &transform, Real scale)

virtual void	drawMarker (Real radius, const Color &color)

virtual void	drawRaster (sp< ImageI > spImageI, const SpatialVector &location)

virtual sp< DrawBufferI >	createBuffer (void)

Public Member Functions inherited from fe::Component
const String &	name (void) const
	Return the components chosen name. More...

const String	verboseName (void) const
	Return the annotated chosen name. More...

void	setName (const String &name)
	Rename the component to anything you want. More...

hp< Registry >	registry (void) const
	Get the Registry that created this component. More...

void	adjoin (sp< Component > spComponent)
	Tie this component's lifetime to another. More...

sp< Component >	create (const String &implementation, BWORD quiet=FALSE) const
	Convienience function to registry()->create() More...

void	disjoin (void)
	Untie component from Hub, if connected. More...

String	factoryName (void)

void	setLibrary (sp< Library > spLibrary)
	Store a reference to the library used to instantiate this component. More...

sp< Library >	library (void)
	Get the library that created the component. More...

void	setFactoryIndex (I32 a_factoryIndex)
	Set the library's factory index. More...

I32	factoryIndex (void)
	Get the library's factory index. More...

void	setSingleton (BWORD set)
	Specify whether component is a singleton. More...

BWORD	isSingleton (void)
	Return whether component is a singleton. More...

virtual void	acquire (void)
	Specialized reference increment. More...

virtual void	release (void)
	Specialized reference decrement. More...

Public Member Functions inherited from fe::Handled< Component >
const hp< Component > &	getHandle (void) const
	Get a safe handle to this object. More...

Public Member Functions inherited from fe::Protectable
virtual I32	protection (void) const

virtual void	protect (void)

virtual void	unprotect (void)

virtual Protectable *	clone (Protectable *pInstance=NULL)

Public Member Functions inherited from fe::Counted
virtual void	acquire (int &rCount)
	Increment the reference count (and get the count) More...

virtual void	abandon (void)
	Decrement the reference count. More...

int	count (void) const
	Return the count of references. More...

void	setName (const String &)

void	trackReference (void *pReference, String what)

void	untrackReference (void *pReference)

void	registerRegion (void *pT, U32 bytes)

Public Member Functions inherited from fe::ext::HandlerI
virtual void	handleBind (sp< SignalerI > spSignalerI, sp< Layout > spLayout)

virtual void	handleSignal (Record &signal, sp< SignalerI > spSignalerI)

Private Member Functions
void	ensureDrawChain (void)

void	drawInternal (cp< DrawableI > cpDrawableI, const Color color, const SpatialTransform pTransform=NULL)

void	drawCropBox (const Box2i &box, const Color &color)

void	runTracers (void)

void	traceImage (U32 section, U32 sections)

BWORD	traceRay (U32 depth, const Vector2i &coordinate, U8 *element, Real contribution, BWORD from_shadow, const SpatialVector &origin, const SpatialVector &direction, Real maxDistance, BWORD probe, BWORD getImpact, sp< SurfaceI::ImpactI > &rspImpactI, cp< SurfaceI > &rcpSurfaceI)

void	logElement (U8 *element)

U8 *	pixel (U32 a_x, U32 a_y)

BWORD	probeCheck (U32 x, U32 y)

sp< ViewI >	view (void)

void	stopThreads (void)

Private Attributes
WindowEvent	m_event

sp< DrawMode >	m_spWireframe

Array< Sphere >	m_spheres

Array< Cylinder >	m_cylinders

Array< Disk >	m_disks

Array< Drawable >	m_drawables

Array< SpatialVector >	m_showHitArray

Array< SpatialVector >	m_showNormalArray

Array< SpatialVector >	m_showReflectionArray

Array< SpatialVector >	m_showShadowArray

U8 *	m_pPixelData

U32	m_sphereCount

U32	m_cylinderCount

U32	m_diskCount

U32	m_drawableCount

sp< DrawI >	m_spDrawChain

BWORD	m_autoDrawChain

sp< ImageI >	m_spImageI [2]

U32	m_current

U32	m_lenx

U32	m_leny

SpatialVector	m_light

SpatialVector	m_mouse

BWORD	m_mousePress

SpatialVector	m_offset

sp< JobQueue< I32 > >	m_spJobQueue

sp< Gang< TracerWorker, I32 > >	m_spGang

Additional Inherited Members
Public Types inherited from fe::ext::DrawI
enum	StripMode { e_discrete, e_strip, e_fan, e_triple }
	Format of vertices for tri-stripping. More...

enum	MatrixMode { e_modelview, e_projection, e_texture, e_color }

Static Public Member Functions inherited from fe::Counted
static String	reportTracker (void)

static U32	trackerCount (void)

Protected Types inherited from fe::Initialized
typedef void(*	InitializeFunction) (Initialized *)

Protected Member Functions inherited from fe::Initialized
void	addInitializer (InitializeFunction function)

Protected Member Functions inherited from fe::Handled< Component >
void	abandonHandle (void)

Protected Member Functions inherited from fe::Counted
int	releaseInternal (void)
	Decrement the reference count. More...

void	suppressReport (void)

Related Functions inherited from fe::Component
FE_DL_EXPORT void FE_CDECL	checkUnload (sp< Library > &pLibrary, Component *pComponent=NULL)
	Delete the component and unload libraries where appropriate. More...

Detailed Description

Ray-tracing implementation for DrawI.

Member Function Documentation

◆ clearInput()

void fe::ext::DrawRayTrace::clearInput ( void )

virtual

Reset the current input queue.

Reimplemented from fe::ext::DrawNull.

◆ draw()

void fe::ext::DrawRayTrace::draw	(	cp< DrawableI >	cpDrawableI,
		const Color *	color
	)

virtual

Draw DrawableI.

If color is NULL, the surface is expected to use its own color data.

Reimplemented from fe::ext::DrawNull.

◆ drawAlignedText()

virtual void fe::ext::DrawRayTrace::drawAlignedText	(	const SpatialVector &	location,
		const String	text,
		const Color &	color
	)

inlinevirtual

Draw screen-aligned single color text.

Text is drawn at the given location, transformed and projected by the current state of the underlying graphics system.

Reimplemented from fe::ext::DrawNull.

◆ drawCylinder()

virtual void fe::ext::DrawRayTrace::drawCylinder	(	const SpatialTransform &	transform,
		const SpatialVector *	scale,
		Real	baseScale,
		const Color &	color,
		U32	slices
	)

inlinevirtual

Draw a transformed cylinder or cone.

The baseScale is a additional scale at the base of the cylinder. For a cone, specify a baseScale of 0.

Reimplemented from fe::ext::DrawNull.

References fe::ext::DrawNull::draw().

◆ flush()

void fe::ext::DrawRayTrace::flush ( void )

virtual

Called once after each frame.

This shifts data access to freeze the current input buffer and prepare a new empty input buffer.

The resulting output buffer is sent on to the next DrawI interface.

Reimplemented from fe::ext::DrawNull.

◆ flushLive()

void fe::ext::DrawRayTrace::flushLive ( void )

virtual

Pass on current input data as is.

This sends the current input to the next DrawI interface without shifting buffers. The same input can still be written to afterwards.

Reimplemented from fe::ext::DrawNull.

◆ setDrawChain()

virtual void fe::ext::DrawRayTrace::setDrawChain ( sp< DrawI > a_spDrawI )

inlinevirtual

Set next DrawI in a chain.

If this DrawI is designed to pass drawing commands to another DrawI, such as for conversion or caching, this commands specifies that next component.

Any implementation may ignore this request.

Reimplemented from fe::ext::DrawNull.

◆ setTransform()

virtual void fe::ext::DrawRayTrace::setTransform ( const SpatialTransform & a_rTransform )

inlinevirtual

Impose a spatial translation.

If supported, this adjusts the output in an implementation-specific manner.

Any implementation may ignore this request or just use part of the transform, such as translation only.

Reimplemented from fe::ext::DrawNull.

◆ view()

virtual sp<ViewI> fe::ext::DrawRayTrace::view ( void ) const

inlinevirtual

Get current view.

Reimplemented from fe::ext::DrawNull.

References view().

Referenced by view().

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ clearInput()

◆ draw()

◆ drawAlignedText()

◆ drawCylinder()

◆ flush()

◆ flushLive()

◆ setDrawChain()

◆ setTransform()

◆ view()
