Free Electron
Public Member Functions | List of all members
fe::ext::ReactorI Class Referenceabstract

Enable specification of named 'reactions', presumably to anticipated conditions. More...

#include <ReactorI.h>

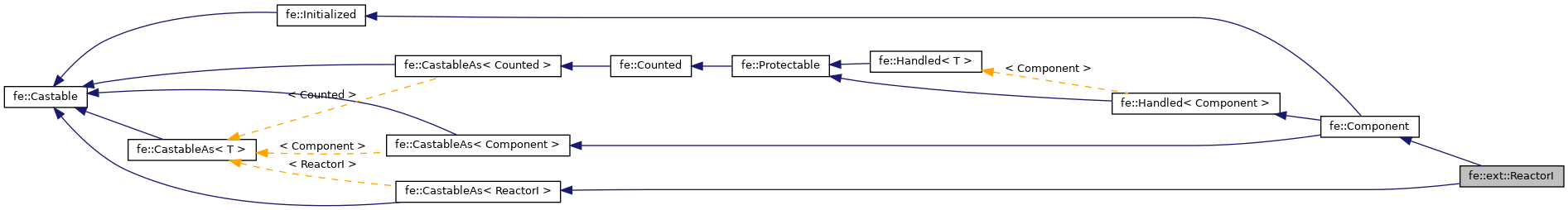

Inheritance diagram for fe::ext::ReactorI:
Inheritance graph
[legend]

Public Member Functions

virtual void add (const String &a_name, sp< SignalerI > a_signaler, Record r_sig)=0

virtual void react (const String &a_name)=0

- Public Member Functions inherited from fe::Component
const Stringname (void) const
 Return the components chosen name. More...

const String verboseName (void) const
 Return the annotated chosen name. More...

void setName (const String &name)
 Rename the component to anything you want. More...

hp< Registryregistry (void) const
 Get the Registry that created this component. More...

void adjoin (sp< Component > spComponent)
 Tie this component's lifetime to another. More...

sp< Componentcreate (const String &implementation, BWORD quiet=FALSE) const
 Convienience function to registry()->create() More...

void disjoin (void)
 Untie component from Hub, if connected. More...

String factoryName (void)

void setLibrary (sp< Library > spLibrary)
 Store a reference to the library used to instantiate this component. More...

sp< Librarylibrary (void)
 Get the library that created the component. More...

void setFactoryIndex (I32 a_factoryIndex)
 Set the library's factory index. More...

I32 factoryIndex (void)
 Get the library's factory index. More...

void setSingleton (BWORD set)
 Specify whether component is a singleton. More...

BWORD isSingleton (void)
 Return whether component is a singleton. More...

virtual void acquire (void)
 Specialized reference increment. More...

virtual void release (void)
 Specialized reference decrement. More...

- Public Member Functions inherited from fe::Handled< Component >
const hp< Component > & getHandle (void) const
 Get a safe handle to this object. More...

- Public Member Functions inherited from fe::Protectable
virtual I32 protection (void) const

virtual void protect (void)

virtual void unprotect (void)

virtual Protectableclone (Protectable *pInstance=NULL)

- Public Member Functions inherited from fe::Counted
virtual void acquire (int &rCount)
 Increment the reference count (and get the count) More...

virtual void abandon (void)
 Decrement the reference count. More...

int count (void) const
 Return the count of references. More...

void setName (const String &)

void trackReference (void *pReference, String what)

void untrackReference (void *pReference)

void registerRegion (void *pT, U32 bytes)

- Public Member Functions inherited from fe::Initialized
void initializeAll (void)

void setActive (bool a_active)


Additional Inherited Members

- Static Public Member Functions inherited from fe::Counted
static String reportTracker (void)

static U32 trackerCount (void)

- Protected Types inherited from fe::Initialized
typedef void(* InitializeFunction) (Initialized *)

- Protected Member Functions inherited from fe::Handled< Component >
void abandonHandle (void)

- Protected Member Functions inherited from fe::Counted
int releaseInternal (void)
 Decrement the reference count. More...

void suppressReport (void)

- Protected Member Functions inherited from fe::Initialized
void addInitializer (InitializeFunction function)


Detailed Description

Enable specification of named 'reactions', presumably to anticipated conditions.

For example, it may be useful for a GUI selection component to fire off an application specific signal when it actually starts and ends a selection. These could be well-known (documented by the selection component) named conditions of 'on_select' and 'off_select'.

The application could then specify records to fire on such conditions:

sp<ReactorI> spSelectionComponent;
Record r_on_select;
Record r_off_select;
...
// create component and records, etc
...
spSelectionComponent->add("on_select", spSignaler, r_on_select);
spSelectionComponent->add("off_select", spSignaler, r_off_select);

Within the component itself the signals are fired like this:

// near code of selection starting
react("on_select");
...
// near code of selection ending
react("off_select");

The documentation for this class was generated from the following file:
