fe::ext::RecordArrayView< T > Class Template Reference

RecordView Iteration over a RecordArray. More...

#include <RecordArrayView.h>

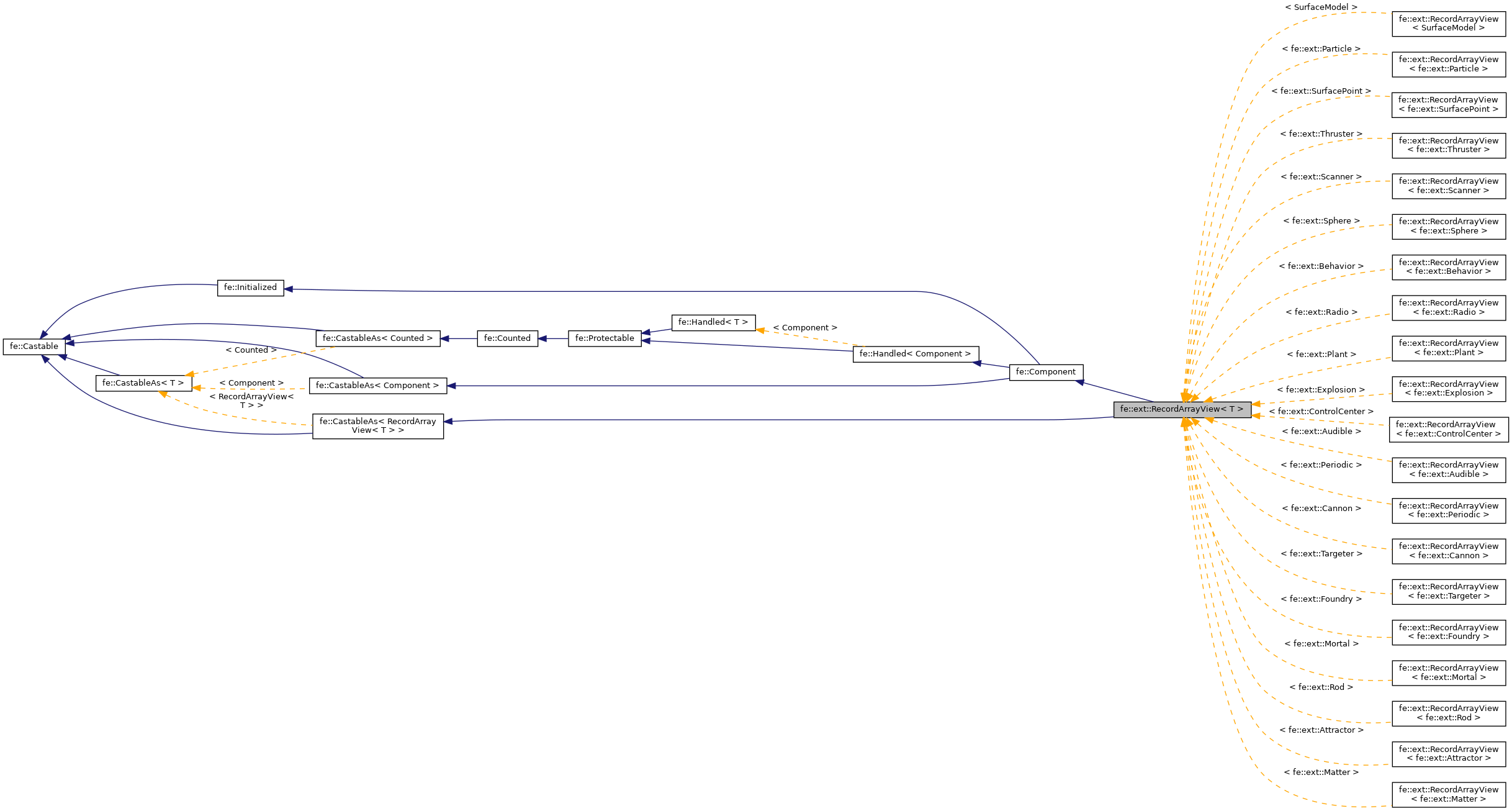

Inheritance diagram for fe::ext::RecordArrayView< T >:

Public Member Functions
void	bind (const sp< RecordArray > &rspRecordArray)
	Associate with a specific RecordArray. More...
BWORD	isBound (void) const
	Check if bound to a non-zero length RecordArray. More...
void	bind (sp< Scope > &rspScope)
	Associate with a specific Scope. More...
sp< Scope >	scope (void)
	Return the bound Scope. More...
Iterator	begin (void) const
	Return an Iterator pointing at the first index. More...
Iterator	end (void) const
	Return an invalid Iterator indicating no more. More...
T &	operator[] (U32 a_index)
	Return a RecordView bound to a Record. More...
T &	at (U32 a_index)
	Return a RecordView potentially bound to a Record. More...
T &	recordView (void)
	Return the contained RecordView. More...
Public Member Functions inherited from fe::Component
const String &	name (void) const
	Return the components chosen name. More...
const String	verboseName (void) const
	Return the annotated chosen name. More...
void	setName (const String &name)
	Rename the component to anything you want. More...
hp< Registry >	registry (void) const
	Get the Registry that created this component. More...
void	adjoin (sp< Component > spComponent)
	Tie this component's lifetime to another. More...
sp< Component >	create (const String &implementation, BWORD quiet=FALSE) const
	Convienience function to registry()->create() More...
void	disjoin (void)
	Untie component from Hub, if connected. More...
String	factoryName (void)
void	setLibrary (sp< Library > spLibrary)
	Store a reference to the library used to instantiate this component. More...
sp< Library >	library (void)
	Get the library that created the component. More...
void	setFactoryIndex (I32 a_factoryIndex)
	Set the library's factory index. More...
I32	factoryIndex (void)
	Get the library's factory index. More...
void	setSingleton (BWORD set)
	Specify whether component is a singleton. More...
BWORD	isSingleton (void)
	Return whether component is a singleton. More...
virtual void	acquire (void)
	Specialized reference increment. More...
virtual void	release (void)
	Specialized reference decrement. More...
Public Member Functions inherited from fe::Handled< Component >
const hp< Component > &	getHandle (void) const
	Get a safe handle to this object. More...
Public Member Functions inherited from fe::Protectable
virtual I32	protection (void) const
virtual void	protect (void)
virtual void	unprotect (void)
virtual Protectable *	clone (Protectable *pInstance=NULL)
Public Member Functions inherited from fe::Counted
virtual void	acquire (int &rCount)
	Increment the reference count (and get the count) More...
virtual void	abandon (void)
	Decrement the reference count. More...
int	count (void) const
	Return the count of references. More...
void	setName (const String &)
void	trackReference (void *pReference, String what)
void	untrackReference (void *pReference)
void	registerRegion (void *pT, U32 bytes)
Public Member Functions inherited from fe::Initialized
void	initializeAll (void)
void	setActive (bool a_active)

Private Attributes
sp< RecordArray >	m_spRecordArray
T	m_recordView

Additional Inherited Members
Static Public Member Functions inherited from fe::Counted
static String	reportTracker (void)
static U32	trackerCount (void)
Protected Types inherited from fe::Initialized
typedef void(*	InitializeFunction) (Initialized *)
Protected Member Functions inherited from fe::Handled< Component >
void	abandonHandle (void)
Protected Member Functions inherited from fe::Counted
int	releaseInternal (void)
	Decrement the reference count. More...
void	suppressReport (void)
Protected Member Functions inherited from fe::Initialized
void	addInitializer (InitializeFunction function)
Related Functions inherited from fe::Component
FE_DL_EXPORT void FE_CDECL	checkUnload (sp< Library > &pLibrary, Component *pComponent=NULL)
	Delete the component and unload libraries where appropriate. More...

Detailed Description

template<typename T>
class fe::ext::RecordArrayView< T >

RecordView Iteration over a RecordArray.

RecordArrayView<MyRecordView> rav;
sp<RecordArray> spRA=spRG->getArray("my_layout");
rav.bind(spRA);

for(MyRecordView& rMyView: rav)
{
    feLog("%d\n",rMyView.myI32());
}

The RecordView reference obtained by dereferencing an iterator is reused.
It will simply bind a new Record when stepping the iterator.
A RecordArrayView instance has its own RecordView instance,
for at() and operator[](), which is also reused.

Member Function Documentation

at()

template<typename T>

T& fe::ext::RecordArrayView< T >::at ( U32  a_index )

inline

Return a RecordView potentially bound to a Record.

This Record is obtained from the RecordArray by index. If the index goes beyond the length of the RecordArray, the RecordView is unbound.

Since this RecordView instance can be reused, it should only be used for immediate access.

begin()

template<typename T>

Iterator fe::ext::RecordArrayView< T >::begin ( void  ) const

inline

Return an Iterator pointing at the first index.

bind() [1/2]

template<typename T>

void fe::ext::RecordArrayView< T >::bind ( const sp< RecordArray > &  rspRecordArray )

inline

Associate with a specific RecordArray.

Access a RecordView using an Iterator or the bracket operator. The RecordView will bind to an indexed Record in the RecordArray.

Binding to a RecordArray will also bind to its Scope.

bind() [2/2]

template<typename T>

void fe::ext::RecordArrayView< T >::bind ( sp< Scope > &  rspScope )

inline

Associate with a specific Scope.

This will populate the functors in the local RecordView instance. This can be useful for makign Accessor check() calls before accessing individual records.

end()

template<typename T>

Iterator fe::ext::RecordArrayView< T >::end ( void  ) const

inline

Return an invalid Iterator indicating no more.

isBound()

template<typename T>

BWORD fe::ext::RecordArrayView< T >::isBound ( void  ) const

inline

Check if bound to a non-zero length RecordArray.

operator[]()

template<typename T>

T& fe::ext::RecordArrayView< T >::operator[] ( U32  a_index )

inline

Return a RecordView bound to a Record.

This Record is obtained from the RecordArray by index. No bounds checking is done.

Since this RecordView instance can be reused, it should only be used for immediate access.

recordView()

template<typename T>

T& fe::ext::RecordArrayView< T >::recordView ( void  )

inline

Return the contained RecordView.

This RecordView is the same RecordView returned by at() and the bracket operator.

It is mainly intended to be used for check() calls on its functors. This can be done without being bound to a RecordArray if a Scope has been bound.

Since this RecordView instance can be reused, it should only be used for immediate access.

scope()

template<typename T>

sp<Scope> fe::ext::RecordArrayView< T >::scope ( void  )

inline

Return the bound Scope.

---

The documentation for this class was generated from the following file:

• RecordArrayView.h
