Bindable collection of accessor Functors. More...

#include <RecordView.h>

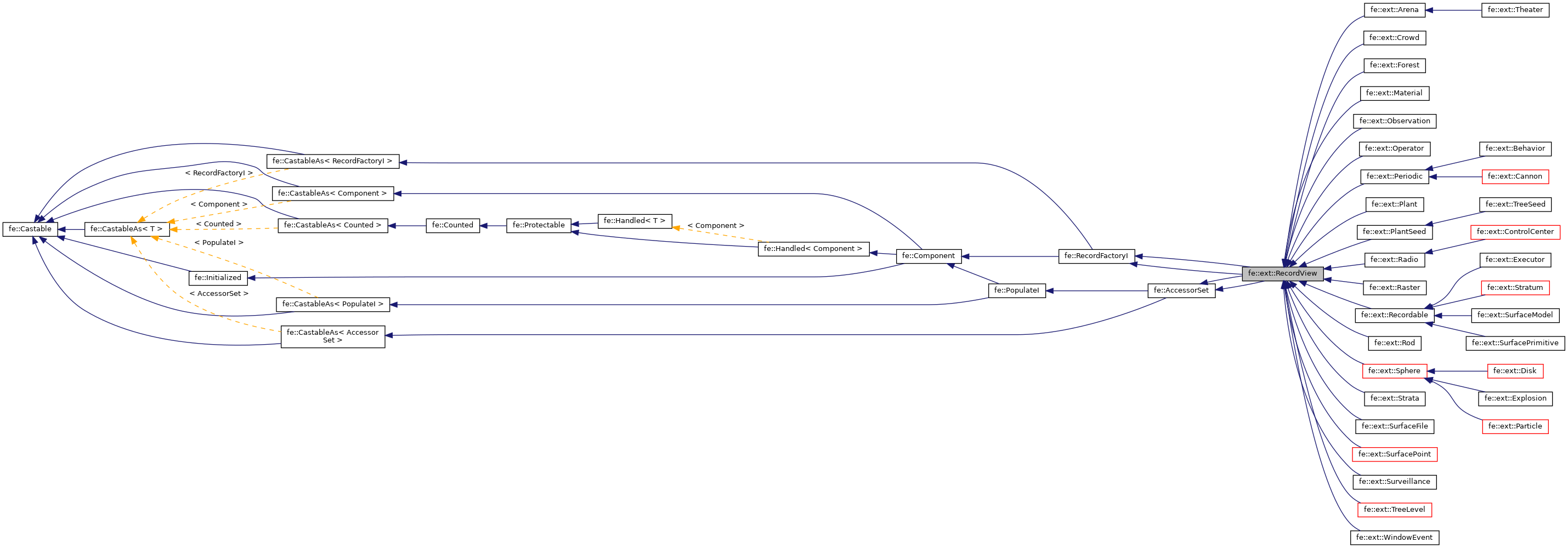

Inheritance diagram for fe::ext::RecordView:

[legend]

Classes
class	Functor
	Bound accessor in a RecordView. More...

class	RecordHolder
	Untyped Functor base. More...

Public Member Functions
void	setName (const String &name)

const String	verboseName (void) const

void	bind (sp< Scope > &rspScope)
	Associate with a Scope. More...

void	bind (hp< Scope > &rhpScope)
	Associate with a Scope by Handle. More...

hp< Scope > &	scope (void)
	Return associated Scope. More...

void	unbind (void)
	Disassociate with any Record. More...

void	bind (const Record record, BWORD weak=FALSE)
	Associate with a specific Record. More...

void	bind (const WeakRecord weakRecord, BWORD weak=FALSE)
	Associate with a specific WeakRecord. More...

void	setWeakRecord (const WeakRecord weakRecord)
	Associate with a specific WeakRecord. More...

virtual void	produce (Record &rRecord)
	Produce a Record using all the attributes. More...

virtual void	finalize (Record &rRecord)
	Finalize a Record using all the attributes. More...

Record	createRecord (void)
	Create a Record using all the attributes. More...

WeakRecord	record (void) const
	Access the record by weak (fast) reference. More...

sp< Layout >	layout (void)
	Access a Layout of all the attributes. More...

void	dump (void)
	Spew attributes and state for the bound Record. More...

virtual void	addFunctors (void)=0
	Called at instantiation to add functors. More...

virtual void	initializeRecord (void)
	Called at instantiation to initialize attributes. More...

virtual void	finalizeRecord (void)
	Called right after instantiation to finalize complex attributes. More...

void	setName (const String &name)

const String	verboseName (void) const

void	bind (sp< Scope > &rspScope)
	Associate with a Scope. More...

void	bind (hp< Scope > &rhpScope)
	Associate with a Scope by Handle. More...

hp< Scope > &	scope (void)
	Return associated Scope. More...

void	bind (const sp< RecordArray > &rspRecordArray)
	Associate with a specific RecordArray. More...

void	unbind (void)
	Disassociate with any Record or RecordArray. More...

void	bind (const Record record, BWORD weak=FALSE)
	Associate with a specific Record. More...

void	bind (const WeakRecord weakRecord, BWORD weak=FALSE)

void	setIndex (U32 index)
	Set the index into the bound RecordArray. More...

BWORD	step (void)
	Step through the records in the array. More...

U32	index (void)
	Return the current index into the RecordArray. More...

virtual void	produce (Record &rRecord)
	Produce a Record using all the attributes. More...

virtual void	finalize (Record &rRecord)
	Finalize a Record using all the attributes. More...

Record	createRecord (void)
	Create a Record using all the attributes. More...

WeakRecord	record (void) const
	Access the record by weak (fast) reference. More...

sp< Layout >	layout (void)
	Access a Layout of all the attributes. More...

void	dump (void)
	Spew attributes and state for the bound Record. More...

virtual void	addFunctors (void)=0
	Called at instantiation to add functors. More...

virtual void	initializeRecord (void)
	Called at instantiation to initialize attributes. More...

virtual void	finalizeRecord (void)
	Called right after instantiation to finalize complex attributes. More...

Public Member Functions inherited from fe::AccessorSet
	AccessorSet (sp< Scope > spScope)

virtual FE_UWORD	size (void) const

virtual BaseAccessor *	operator[] (FE_UWORD index)

bool	operator== (const AccessorSet &a_aset) const

bool	operator< (const AccessorSet &a_aset) const

bool	bind (const WeakRecord a_record)

void	bind (sp< Scope > spScope)

virtual void	populate (sp< Layout > spLayout)

void	enforceHaving (const AccessorSet &a_other)

bool	bindCheck (sp< Layout > spLayout)

bool	check (sp< LayoutSB > spLayout)

bool	check (sp< LayoutAV > spLayout)

bool	bindCheck (sp< RecordArray > spRA)

bool	check (sp< RecordArray > spRA)

bool	check (const WeakRecord &a_record)

bool	check (const Record &a_record)

void	check (const WeakRecord a_record, const char *a_annotation)

void	enforce (const String &a_ifHas)

void	filter (sp< RecordGroup > rg_output, sp< RecordGroup > rg_input)

hp< Scope >	scope (void)

void	filter (std::vector< Record > &a_records, sp< RecordGroup > rg_input)

void	filter (std::vector< WeakRecord > &a_records, sp< RecordGroup > rg_input)

const t_bitset &	bitset (void) const

void	setBitset (const t_bitset &a_bs)

void	add (BaseAccessor &a_accessor, const String &a_attribute)

void	add (BaseAccessor &a_accessor)

void	attach (const WeakRecord &a_record)

Public Member Functions inherited from fe::Component
const String &	name (void) const
	Return the components chosen name. More...

const String	verboseName (void) const
	Return the annotated chosen name. More...

void	setName (const String &name)
	Rename the component to anything you want. More...

hp< Registry >	registry (void) const
	Get the Registry that created this component. More...

void	adjoin (sp< Component > spComponent)
	Tie this component's lifetime to another. More...

sp< Component >	create (const String &implementation, BWORD quiet=FALSE) const
	Convienience function to registry()->create() More...

void	disjoin (void)
	Untie component from Hub, if connected. More...

String	factoryName (void)

void	setLibrary (sp< Library > spLibrary)
	Store a reference to the library used to instantiate this component. More...

sp< Library >	library (void)
	Get the library that created the component. More...

void	setFactoryIndex (I32 a_factoryIndex)
	Set the library's factory index. More...

I32	factoryIndex (void)
	Get the library's factory index. More...

void	setSingleton (BWORD set)
	Specify whether component is a singleton. More...

BWORD	isSingleton (void)
	Return whether component is a singleton. More...

virtual void	acquire (void)
	Specialized reference increment. More...

virtual void	release (void)
	Specialized reference decrement. More...

Public Member Functions inherited from fe::Handled< Component >
const hp< Component > &	getHandle (void) const
	Get a safe handle to this object. More...

Public Member Functions inherited from fe::Protectable
virtual I32	protection (void) const

virtual void	protect (void)

virtual void	unprotect (void)

virtual Protectable *	clone (Protectable *pInstance=NULL)

Public Member Functions inherited from fe::Counted
virtual void	acquire (int &rCount)
	Increment the reference count (and get the count) More...

virtual void	abandon (void)
	Decrement the reference count. More...

int	count (void) const
	Return the count of references. More...

void	setName (const String &)

void	trackReference (void *pReference, String what)

void	untrackReference (void *pReference)

void	registerRegion (void *pT, U32 bytes)

Public Member Functions inherited from fe::Initialized
void	initializeAll (void)

void	setActive (bool a_active)

Static Public Member Functions
template<typename T >
static void	registerFactory (sp< Scope > spScope)
	Indicate a RecordFactoryI for a Scope. More...

static sp< RecordGroup >	loadRecordGroup (sp< Scope > spScope, String filename, BWORD a_binary=FALSE)
	Load a RecordGroup from a file. More...

static sp< RecordGroup >	loadRecordGroupFromBuffer (sp< Scope > spScope, String buffer, BWORD a_binary=FALSE)
	Serialize a RecordGroup from a string. More...

static void	saveRecordGroup (sp< Scope > spScope, sp< RecordGroup > &rspRecordGroup, String filename, BWORD a_binary=FALSE)
	Save a RecordGroup to a file. More...

template<typename T >
static void	registerFactory (sp< Scope > spScope)
	Indicate a RecordFactoryI for a Scope. More...

static sp< RecordGroup >	loadRecordGroup (sp< Scope > spScope, String filename, BWORD a_binary=FALSE)
	Load the root RecordGroup from a file. More...

static sp< RecordGroup >	loadRecordGroupFromBuffer (sp< Scope > spScope, String buffer, BWORD a_binary=FALSE)

static void	saveRecordGroup (sp< Scope > spScope, sp< RecordGroup > &rspRecordGroup, String filename, BWORD a_binary=FALSE)
	Save the root RecordGroup to a file. More...

Static Public Member Functions inherited from fe::Counted
static String	reportTracker (void)

static U32	trackerCount (void)

Public Attributes
Accessor< int >	count

Protected Member Functions
void	add (BaseAccessor &rFunctor, const char *name)
	Add an attribute Functor. More...

	RecordView (const RecordView &rRecordView)

void	add (BaseAccessor &rFunctor, const char *name)
	Add an attribute Functor. More...

Protected Member Functions inherited from fe::Handled< Component >
void	abandonHandle (void)

Protected Member Functions inherited from fe::Counted
int	releaseInternal (void)
	Decrement the reference count. More...

void	suppressReport (void)

Protected Member Functions inherited from fe::Initialized
void	addInitializer (InitializeFunction function)

Private Member Functions
sp< Layout >	createLayout (void)

String	nameOf (BaseAccessor &accessor) const

String	typeOf (BaseAccessor &accessor) const

String	printOf (BaseAccessor &accessor)

sp< BaseType::Info >	helpOf (BaseAccessor &accessor) const

sp< BaseType >	baseTypeOf (BaseAccessor &accessor) const

	RecordView (const RecordView &rRecordView)

void	assignIndex (U32 index)

sp< Layout >	createLayout (void)

String	nameOf (BaseAccessor &accessor) const

String	typeOf (BaseAccessor &accessor) const

String	printOf (BaseAccessor &accessor)

sp< BaseType::Info >	helpOf (BaseAccessor &accessor) const

sp< BaseType >	baseTypeOf (BaseAccessor &accessor) const

Private Attributes
hp< Layout >	m_hpLayout

Record	m_record

WeakRecord	m_weakRecord

sp< RecordArray >	m_spRecordArray

U32	m_index

U32	m_nextIndex

BWORD	m_tempArray

Additional Inherited Members
Protected Types inherited from fe::Initialized
typedef void(*	InitializeFunction) (Initialized *)

Protected Attributes inherited from fe::AccessorSet
hp< Scope >	m_hpScope

Array< BaseAccessor * >	m_accessors

t_bitset	m_bitset

WeakRecord	m_optional_record

Related Functions inherited from fe::Component
FE_DL_EXPORT void FE_CDECL	checkUnload (sp< Library > &pLibrary, Component *pComponent=NULL)
	Delete the component and unload libraries where appropriate. More...

Detailed Description

Bindable collection of accessor Functors.

RecordView is an enhanced AccessorSet that supports inheritance and default values. Like an AccessorSet, a RecordView instance can be reused for any number of Record instances.

For example:

class FE_DL_EXPORT Point: public RecordView
{
    public:
        Functor<SpatialVector>      location;
                Point(void)         { setName("Point"); }
virtual void    addFunctors(void)
                {
                    add(length,     "spatial_vector",
                            FE_SPEC("spc:at",
                            "translation from origin"));
                }
virtual void    initializeRecord(void)
                {
                    set(location());
                }
virtual void    finalizeRecord(void)
                {
                }
};

A class that derives from RecordView is expected to provide several things.
Added attributes are provided through Functors,
an enhancement of the Accessor.

Provide a name for the generated Layout by setting the name
of the RecordView, using setName().

Functors are wired up using add() during addFunctors().
The implementation of addFunctors() should call the like-named functions
for any direct base classes, much like a manual constructor mechanism.
Convention insists that attributes names are provided using
FE_USE or FE_SPEC.  FE_USE presumes that an FE_SPEC or FE_ATTRIBUTE
elsewhere has provided a description for the atrribute.

As a RecordFactoryI, a RecordView can be used to instantiate Records
by name from file.  The method initializeRecord is called before
loading data to provide basic defaults.  A method finalizeRecord
can be used after loading a Record for producing derived values,
such as creating a component as named by an attribute.
Both initializeRecord and finalizeRecord may be omitted if
nothing needs to be done for that stage.
As with addFunctors, both initializeRecord and finalizeRecord should
call the like-named functions for any direct base classes.

To be available as a RecordFactoryI, each RecordView-derived type
should be added to a library during CreateLibrary()
like any other Component.

pLibrary->add<Point>("RecordFactoryI.Point.fe");

File-based defaults can be provided as a template in a record group file.

TEMPLATE Point ""

spc:at "0 0 0"

Attributes not represented by a template retain settings from
initializeRecord or their type's constructor.
Derived templates can provide new defaults that override prior values.
In the basic case, templates will parallel provided Factories,
including multiple inheritance (the second argument to TEMPLATE).
However, new templates can be provided purely on multiple inheritance
where no new attributes are added.

Member Function Documentation

◆ add() [1/2]

void fe::ext::RecordView::add	(	BaseAccessor &	rFunctor,
		const char *	name
	)

inlineprotected

Add an attribute Functor.

The functor should be a member variable. The name can be arbitrary, but conventions may be wise.

References fe::BaseAccessor::setup().

◆ add() [2/2]

void fe::ext::RecordView::add	(	BaseAccessor &	rFunctor,
		const char *	name
	)

inlineprotected

Add an attribute Functor.

The functor should be a member variable. The name can be arbitrary, but conventions may be wise.

References index(), and fe::BaseAccessor::setup().

◆ addFunctors() [1/2]

virtual void fe::ext::RecordView::addFunctors ( void )

pure virtual

Called at instantiation to add functors.

In addition to using add() to explicitly adding all the functors for a particular class, the implementation of this function should first call addFunctors() for all directly inherited classes that are indirectly or directly derived from RecordView().

Implemented in fe::ext::WindowEvent, fe::ext::StickLevel, fe::ext::Plant, fe::ext::Forest, fe::ext::TreeLevel, fe::ext::Audible, fe::ext::Sphere, fe::ext::Material, fe::ext::TreeSeed, fe::ext::Matter, fe::ext::Scanner, fe::ext::SurfaceModel, fe::ext::Executor, fe::ext::Cylinder, fe::ext::Arena, fe::ext::Operator, fe::ext::Recordable, fe::ext::SurfacePoint, fe::ext::ControlCenter, fe::ext::Observation, fe::ext::SurfacePrimitive, fe::ext::SurfaceTransform, fe::ext::Particle, fe::ext::Theater, fe::ext::Strata, fe::ext::Stratum, fe::ext::Raster, fe::ext::Rod, fe::ext::Disk, fe::ext::SurfaceFile, fe::ext::PlantSeed, fe::ext::Radio, fe::ext::Behavior, fe::ext::Cannon, fe::ext::Controlled, fe::ext::Crowd, fe::ext::Foundry, fe::ext::Mortal, fe::ext::Periodic, fe::ext::Surveillance, fe::ext::Explosion, fe::ext::Attractor, fe::ext::Targeter, fe::ext::Thruster, fe::ext::LeafLevel, and fe::ext::Proxy.

◆ addFunctors() [2/2]

virtual void fe::ext::RecordView::addFunctors ( void )

pure virtual

Called at instantiation to add functors.

In addition to using add() to explicitly adding all the functors for a particular class, the implementation of this function should first call addFunctors() for all directly inherited classes that are indirectly or directly derived from RecordView().

Implemented in fe::ext::WindowEvent, fe::ext::StickLevel, fe::ext::Plant, fe::ext::Forest, fe::ext::TreeLevel, fe::ext::Audible, fe::ext::Sphere, fe::ext::Material, fe::ext::TreeSeed, fe::ext::Matter, fe::ext::Scanner, fe::ext::SurfaceModel, fe::ext::Executor, fe::ext::Cylinder, fe::ext::Arena, fe::ext::Operator, fe::ext::Recordable, fe::ext::SurfacePoint, fe::ext::ControlCenter, fe::ext::Observation, fe::ext::SurfacePrimitive, fe::ext::SurfaceTransform, fe::ext::Particle, fe::ext::Theater, fe::ext::Strata, fe::ext::Stratum, fe::ext::Raster, fe::ext::Rod, fe::ext::Disk, fe::ext::SurfaceFile, fe::ext::PlantSeed, fe::ext::Radio, fe::ext::Behavior, fe::ext::Cannon, fe::ext::Controlled, fe::ext::Crowd, fe::ext::Foundry, fe::ext::Mortal, fe::ext::Periodic, fe::ext::Surveillance, fe::ext::Explosion, fe::ext::Attractor, fe::ext::Targeter, fe::ext::Thruster, fe::ext::LeafLevel, and fe::ext::Proxy.

◆ bind() [1/8]

void fe::ext::RecordView::bind ( sp< Scope > & rspScope )

inlinevirtual

Associate with a Scope.

This can happen automatically by binding to a Record, but may be neccessary if you need to use the Functors before an appropriate Layout exists.

Implements fe::RecordFactoryI.

Referenced by fe::ext::Attractor::initializeRecord(), fe::ext::Crowd::initializeRecord(), fe::ext::Foundry::initializeRecord(), and fe::ext::Scanner::initializeRecord().

◆ bind() [2/8]

void fe::ext::RecordView::bind ( hp< Scope > & rhpScope )

inline

Associate with a Scope by Handle.

◆ bind() [3/8]

void fe::ext::RecordView::bind	(	const Record	record,
		BWORD	weak = `FALSE`
	)

inline

Associate with a specific Record.

The Record will persist while bound. Use unbind() to release the binding.

Passing Record objects is not thread-safe.

This may use the Record's scope to initialize the functors.

◆ bind() [4/8]

void fe::ext::RecordView::bind ( sp< Scope > & rspScope )

inlinevirtual

Associate with a Scope.

This can happen automatically by binding to a Record or RecordArray, but may be neccessary if you need to use the Functors before an appropriate Layout exists.

Implements fe::RecordFactoryI.

◆ bind() [5/8]

void fe::ext::RecordView::bind	(	const WeakRecord	weakRecord,
		BWORD	weak = `FALSE`
	)

inline

Associate with a specific WeakRecord.

The RecordView will not ensure that the WeakRecord continues to persist.

This may use the Record's scope to initialize the functors.

◆ bind() [6/8]

void fe::ext::RecordView::bind ( hp< Scope > & rhpScope )

inline

Associate with a Scope by Handle.

◆ bind() [7/8]

void fe::ext::RecordView::bind ( const sp< RecordArray > & rspRecordArray )

inline

Associate with a specific RecordArray.

Use setIndex() or step() to associate with each Record.

◆ bind() [8/8]

void fe::ext::RecordView::bind	(	const Record	record,
		BWORD	weak = `FALSE`
	)

inline

Associate with a specific Record.

This is only intended to be used when there is no containing RecordArray available. It can be more efficient to bind to a RecordArray and use setIndex() or step().

Passing Record objects is not thread-safe.

◆ createRecord() [1/2]

Record fe::ext::RecordView::createRecord ( void )

inline

Create a Record using all the attributes.

The Record is automatically bound.

Referenced by produce().

◆ createRecord() [2/2]

Record fe::ext::RecordView::createRecord ( void )

inline

Create a Record using all the attributes.

The Record is automatically bound.

◆ dump() [1/2]

void fe::ext::RecordView::dump ( void )

inline

Spew attributes and state for the bound Record.

◆ dump() [2/2]

void fe::ext::RecordView::dump ( void )

inline

Spew attributes and state for the bound Record.

◆ finalize() [1/2]

virtual void fe::ext::RecordView::finalize ( Record & rRecord )

inlinevirtual

Finalize a Record using all the attributes.

This step follows after the record is fully initialized and potentially serialized in.

The Record is unbound after initialization.

Implements fe::RecordFactoryI.

References finalizeRecord(), fe::RecordSB::isValid(), and unbind().

◆ finalize() [2/2]

virtual void fe::ext::RecordView::finalize ( Record & rRecord )

inlinevirtual

Finalize a Record using all the attributes.

This step follows after the record is fully initialized and potentially serialized in.

The Record is unbound after initialization.

Implements fe::RecordFactoryI.

References finalizeRecord(), fe::RecordSB::isValid(), and unbind().

◆ finalizeRecord() [1/2]

virtual void fe::ext::RecordView::finalizeRecord ( void )

inlinevirtual

Called right after instantiation to finalize complex attributes.

In addition to adjusting any attributes, the implementation of this function should first call finalizeRecord() for all directly inherited classes that are indirectly or directly derived from RecordView().

Functors can be used as accessors at this point.

Reimplemented in fe::ext::SurfaceModel, fe::ext::Material, fe::ext::Executor, fe::ext::SurfacePrimitive, fe::ext::Recordable, and fe::ext::Strata.

Referenced by finalize(), fe::ext::Strata::finalizeRecord(), and fe::ext::Recordable::finalizeRecord().

◆ finalizeRecord() [2/2]

virtual void fe::ext::RecordView::finalizeRecord ( void )

inlinevirtual

Called right after instantiation to finalize complex attributes.

In addition to adjusting any attributes, the implementation of this function should first call finalizeRecord() for all directly inherited classes that are indirectly or directly derived from RecordView().

Functors can be used as accessors at this point.

Reimplemented in fe::ext::SurfaceModel, fe::ext::Material, fe::ext::Executor, fe::ext::SurfacePrimitive, fe::ext::Recordable, and fe::ext::Strata.

◆ index()

U32 fe::ext::RecordView::index ( void )

inline

Return the current index into the RecordArray.

Referenced by add(), and setIndex().

◆ initializeRecord() [1/2]

virtual void fe::ext::RecordView::initializeRecord ( void )

inlinevirtual

Called at instantiation to initialize attributes.

In addition to setting any attributes, the implementation of this function should first call initializeRecord() for all directly inherited classes that are indirectly or directly derived from RecordView().

Functors can be used as accessors at this point.

Reimplemented in fe::ext::WindowEvent, fe::ext::StickLevel, fe::ext::Forest, fe::ext::Plant, fe::ext::Scanner, fe::ext::Audible, fe::ext::SurfaceTransform, fe::ext::SurfaceModel, fe::ext::TreeLevel, fe::ext::Matter, fe::ext::Arena, fe::ext::ControlCenter, fe::ext::Theater, fe::ext::TreeSeed, fe::ext::Executor, fe::ext::Stratum, fe::ext::Particle, fe::ext::Material, fe::ext::Sphere, fe::ext::Observation, fe::ext::Cylinder, fe::ext::SurfacePoint, fe::ext::SurfacePrimitive, fe::ext::Raster, fe::ext::Rod, fe::ext::Cannon, fe::ext::Operator, fe::ext::Foundry, fe::ext::Radio, fe::ext::Recordable, fe::ext::Behavior, fe::ext::Controlled, fe::ext::Crowd, fe::ext::Mortal, fe::ext::Strata, fe::ext::Periodic, fe::ext::Attractor, fe::ext::Surveillance, fe::ext::Targeter, fe::ext::Thruster, fe::ext::Disk, fe::ext::Explosion, fe::ext::SurfaceFile, fe::ext::PlantSeed, fe::ext::Proxy, and fe::ext::LeafLevel.

Referenced by fe::ext::SurfaceFile::initializeRecord(), fe::ext::Recordable::initializeRecord(), fe::ext::Strata::initializeRecord(), and produce().

◆ initializeRecord() [2/2]

virtual void fe::ext::RecordView::initializeRecord ( void )

inlinevirtual

Called at instantiation to initialize attributes.

In addition to setting any attributes, the implementation of this function should first call initializeRecord() for all directly inherited classes that are indirectly or directly derived from RecordView().

Functors can be used as accessors at this point.

Reimplemented in fe::ext::WindowEvent, fe::ext::StickLevel, fe::ext::Forest, fe::ext::Plant, fe::ext::Scanner, fe::ext::Audible, fe::ext::SurfaceTransform, fe::ext::SurfaceModel, fe::ext::TreeLevel, fe::ext::Matter, fe::ext::Arena, fe::ext::ControlCenter, fe::ext::Theater, fe::ext::TreeSeed, fe::ext::Executor, fe::ext::Stratum, fe::ext::Particle, fe::ext::Material, fe::ext::Sphere, fe::ext::Observation, fe::ext::Cylinder, fe::ext::SurfacePoint, fe::ext::SurfacePrimitive, fe::ext::Raster, fe::ext::Rod, fe::ext::Cannon, fe::ext::Operator, fe::ext::Foundry, fe::ext::Radio, fe::ext::Recordable, fe::ext::Behavior, fe::ext::Controlled, fe::ext::Crowd, fe::ext::Mortal, fe::ext::Strata, fe::ext::Periodic, fe::ext::Attractor, fe::ext::Surveillance, fe::ext::Targeter, fe::ext::Thruster, fe::ext::Disk, fe::ext::Explosion, fe::ext::SurfaceFile, fe::ext::PlantSeed, fe::ext::Proxy, and fe::ext::LeafLevel.

◆ layout() [1/2]

sp<Layout> fe::ext::RecordView::layout ( void )

inlinevirtual

Access a Layout of all the attributes.

Implements fe::RecordFactoryI.

◆ layout() [2/2]

sp<Layout> fe::ext::RecordView::layout ( void )

inlinevirtual

Access a Layout of all the attributes.

Implements fe::RecordFactoryI.

◆ loadRecordGroup() [1/2]

static sp<RecordGroup> fe::ext::RecordView::loadRecordGroup	(	sp< Scope >	spScope,
		String	filename,
		BWORD	a_binary = `FALSE`
	)

inlinestatic

Load a RecordGroup from a file.

This is a convenience that doesn't really relate to RecordView.

◆ loadRecordGroup() [2/2]

static sp<RecordGroup> fe::ext::RecordView::loadRecordGroup	(	sp< Scope >	spScope,
		String	filename,
		BWORD	a_binary = `FALSE`
	)

inlinestatic

Load the root RecordGroup from a file.

This is a convenience that doesn't really relate to RecordView.

◆ loadRecordGroupFromBuffer()

static sp<RecordGroup> fe::ext::RecordView::loadRecordGroupFromBuffer	(	sp< Scope >	spScope,
		String	buffer,
		BWORD	a_binary = `FALSE`
	)

inlinestatic

Serialize a RecordGroup from a string.

This is a convenience that doesn't really relate to RecordView.

◆ produce() [1/2]

virtual void fe::ext::RecordView::produce ( Record & rRecord )

inlinevirtual

Produce a Record using all the attributes.

The Record is unbound after initialization.

Implements fe::RecordFactoryI.

References createRecord(), initializeRecord(), fe::RecordSB::isValid(), and unbind().

◆ produce() [2/2]

virtual void fe::ext::RecordView::produce ( Record & rRecord )

inlinevirtual

Produce a Record using all the attributes.

The Record is unbound after initialization.

Implements fe::RecordFactoryI.

References createRecord(), initializeRecord(), fe::RecordSB::isValid(), and unbind().

◆ record() [1/2]

WeakRecord fe::ext::RecordView::record ( void ) const

inline

Access the record by weak (fast) reference.

Referenced by fe::ext::RecordView::Functor< T >::call().

◆ record() [2/2]

WeakRecord fe::ext::RecordView::record ( void ) const

inline

Access the record by weak (fast) reference.

◆ registerFactory() [1/2]

template<typename T >

static void fe::ext::RecordView::registerFactory ( sp< Scope > spScope )

inlinestatic

Indicate a RecordFactoryI for a Scope.

The template type is presumably a RecordView. This function extracts the relevant arguments to pass to the Scope.

It is usually preferable to add the RecordView as a Scope-generic RecordFactoryI using the general registry mechanism.

This is a convenience that doesn't really relate to RecordView.

References fe::Scope::registerFactory().

◆ registerFactory() [2/2]

template<typename T >

static void fe::ext::RecordView::registerFactory ( sp< Scope > spScope )

inlinestatic

Indicate a RecordFactoryI for a Scope.

The template type is presumably a RecordView. This function extracts the relevant arguments to pass to the Scope.

It is usually preferable to add the RecordView as a Scope-generic RecordFactoryI using the general registry mechanism.

This is a convenience that doesn't really relate to RecordView.

References fe::Scope::registerFactory().

◆ saveRecordGroup() [1/2]

static void fe::ext::RecordView::saveRecordGroup	(	sp< Scope >	spScope,
		sp< RecordGroup > &	rspRecordGroup,
		String	filename,
		BWORD	a_binary = `FALSE`
	)

inlinestatic

Save a RecordGroup to a file.

This is a convenience that doesn't really relate to RecordView.

◆ saveRecordGroup() [2/2]

static void fe::ext::RecordView::saveRecordGroup	(	sp< Scope >	spScope,
		sp< RecordGroup > &	rspRecordGroup,
		String	filename,
		BWORD	a_binary = `FALSE`
	)

inlinestatic

Save the root RecordGroup to a file.

This is a convenience that doesn't really relate to RecordView.

◆ scope() [1/2]

hp<Scope>& fe::ext::RecordView::scope ( void )

inline

Return associated Scope.

◆ scope() [2/2]

hp<Scope>& fe::ext::RecordView::scope ( void )

inline

Return associated Scope.

◆ setIndex()

void fe::ext::RecordView::setIndex ( U32 index )

inline

Set the index into the bound RecordArray.

The first step() after setIndex() does not increment the index.

References index().

◆ setWeakRecord()

void fe::ext::RecordView::setWeakRecord ( const WeakRecord weakRecord )

inline

Associate with a specific WeakRecord.

The RecordView will not ensure that the WeakRecord continues to persist.

This method is faster than bind(WeakRecord) as it will never check the Scope and initialize the functors. Using bind(sp<Scope>) before this method can ensure that the functors are initialized.

Referenced by fe::ext::RecordArrayView< fe::ext::Matter >::at().

◆ step()

BWORD fe::ext::RecordView::step ( void )

inline

Step through the records in the array.

The first step will stay on the first record. Later steps increment the index. Stepping past the last record will return FALSE.

In the future, filters may allow step() to skip records.

◆ unbind() [1/2]

void fe::ext::RecordView::unbind ( void )

inline

Disassociate with any Record.

This should free all references.

Referenced by finalize(), and produce().

◆ unbind() [2/2]

void fe::ext::RecordView::unbind ( void )

inline

Disassociate with any Record or RecordArray.

This should free all references.

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ add() [1/2]

◆ add() [2/2]

◆ addFunctors() [1/2]

◆ addFunctors() [2/2]

◆ bind() [1/8]

◆ bind() [2/8]

◆ bind() [3/8]

◆ bind() [4/8]

◆ bind() [5/8]

◆ bind() [6/8]

◆ bind() [7/8]

◆ bind() [8/8]

◆ createRecord() [1/2]

◆ createRecord() [2/2]

◆ dump() [1/2]

◆ dump() [2/2]

◆ finalize() [1/2]

◆ finalize() [2/2]

◆ finalizeRecord() [1/2]

◆ finalizeRecord() [2/2]

◆ index()

◆ initializeRecord() [1/2]

◆ initializeRecord() [2/2]

◆ layout() [1/2]

◆ layout() [2/2]

◆ loadRecordGroup() [1/2]

◆ loadRecordGroup() [2/2]

◆ loadRecordGroupFromBuffer()

◆ produce() [1/2]

◆ produce() [2/2]

◆ record() [1/2]

◆ record() [2/2]

◆ registerFactory() [1/2]

◆ registerFactory() [2/2]

◆ saveRecordGroup() [1/2]

◆ saveRecordGroup() [2/2]

◆ scope() [1/2]

◆ scope() [2/2]

◆ setIndex()

◆ setWeakRecord()

◆ step()

◆ unbind() [1/2]

◆ unbind() [2/2]
