fe::ext::NullViewer Class Reference

Non-rendering viewer. More...

#include <NullViewer.h>

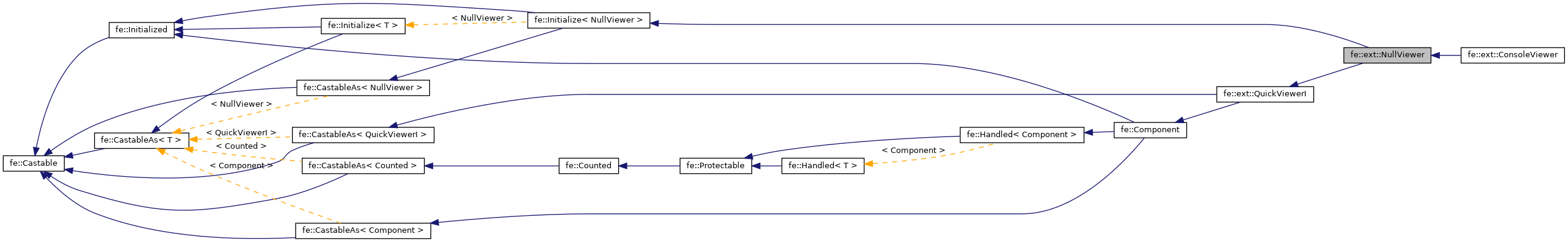

Inheritance diagram for fe::ext::NullViewer:
Inheritance graph
[legend]

Public Member Functions

void initialize (void)

virtual void bind (sp< DrawI > spDrawI)
 Adopts a DrawI. More...

virtual sp< DrawIgetDrawI (void) const
 Returns the current DrawI. More...

virtual sp< WindowIgetWindowI (void) const
 Returns the internally-created WindowI. More...

virtual sp< CameraControllerIgetCameraControllerI (void) const
 Returns the current CameraControllerI. More...

virtual SpatialVector interestPoint (void) const
 Returns the center of attention. More...

virtual SpatialVector auxilliaryPoint (void) const
 Returns the secondary point. More...

virtual void insertBeatHandler (sp< HandlerI > spHandlerI)
 Add an extra handler for the core heartbeat. More...

virtual void insertEventHandler (sp< HandlerI > spHandlerI)
 Add an extra handler for raw event signals. More...

virtual void insertDrawHandler (sp< HandlerI > spHandlerI)
 Specify a handler for render signals. More...

virtual void open (void)
 Map the viewer to the screen. More...

virtual void reopen (void)

virtual void run (U32 frames)
 Run the viewer for a specified number of frames. More...

virtual Real frameRate (void) const
 Returns frames per seconds. More...

- Public Member Functions inherited from fe::Initialized
void initializeAll (void)

void setActive (bool a_active)

- Public Member Functions inherited from fe::Component
const Stringname (void) const
 Return the components chosen name. More...

const String verboseName (void) const
 Return the annotated chosen name. More...

void setName (const String &name)
 Rename the component to anything you want. More...

hp< Registryregistry (void) const
 Get the Registry that created this component. More...

void adjoin (sp< Component > spComponent)
 Tie this component's lifetime to another. More...

sp< Componentcreate (const String &implementation, BWORD quiet=FALSE) const
 Convienience function to registry()->create() More...

void disjoin (void)
 Untie component from Hub, if connected. More...

void setLibrary (sp< Library > spLibrary)
 Store a reference to the library used to instantiate this component. More...

sp< Librarylibrary (void)
 Get the library that created the component. More...

void setSingleton (BWORD set)
 Specify whether component is a singleton. More...

BWORD isSingleton (void)
 Return whether component is a singleton. More...

virtual void acquire (void)
 Specialized reference increment. More...

virtual void release (void)
 Specialized reference decrement. More...

- Public Member Functions inherited from fe::Handled< Component >
const hp< Component > & getHandle (void) const
 Get a safe handle to this object. More...

- Public Member Functions inherited from fe::Protectable
virtual I32 protection (void) const

virtual void protect (void)

virtual void unprotect (void)

virtual Protectableclone (Protectable *pInstance=NULL)

- Public Member Functions inherited from fe::Counted
virtual void acquire (int &rCount)
 Increment the reference count (and get the count) More...

virtual void abandon (void)
 Decrement the reference count. More...

int count (void) const
 Return the count of references. More...

void setName (const String &)

void trackReference (void *pReference, String what)

void untrackReference (void *pReference)

void registerRegion (void *pT, U32 bytes)


Protected Attributes

String m_drawName


Private Attributes

sp< DrawIm_spDrawI

sp< SignalerIm_spSignalerI

sp< Scopem_spScope

sp< Layout > m_spBeatLayout

sp< Layout > m_spUnderlayLayout

sp< Layout > m_spRenderLayout

sp< Layout > m_spOverlayLayout

SpatialVector m_center

AsViewer m_asViewer


Additional Inherited Members

- Static Public Member Functions inherited from fe::Counted
static String reportTracker (void)

static U32 trackerCount (void)

- Protected Types inherited from fe::Initialized
typedef void(* InitializeFunction) (Initialized *)

- Protected Member Functions inherited from fe::Initialized
void addInitializer (InitializeFunction function)

- Protected Member Functions inherited from fe::Handled< Component >
void abandonHandle (void)

- Protected Member Functions inherited from fe::Counted
int releaseInternal (void)
 Decrement the reference count. More...

void suppressReport (void)


Detailed Description

Non-rendering viewer.

Member Function Documentation

◆ auxilliaryPoint()

virtual SpatialVector fe::ext::NullViewer::auxilliaryPoint ( void  ) const
inlinevirtual

Returns the secondary point.

Implements fe::ext::QuickViewerI.

◆ bind()

virtual void fe::ext::NullViewer::bind ( sp< DrawI spDrawI)
inlinevirtual

Adopts a DrawI.

Implements fe::ext::QuickViewerI.

◆ frameRate()

virtual Real fe::ext::NullViewer::frameRate ( void  ) const
inlinevirtual

Returns frames per seconds.

Implements fe::ext::QuickViewerI.

◆ getCameraControllerI()

virtual sp<CameraControllerI> fe::ext::NullViewer::getCameraControllerI ( void  ) const
inlinevirtual

Returns the current CameraControllerI.

Implements fe::ext::QuickViewerI.

◆ getDrawI()

virtual sp<DrawI> fe::ext::NullViewer::getDrawI ( void  ) const
inlinevirtual

Returns the current DrawI.

Implements fe::ext::QuickViewerI.

◆ getWindowI()

virtual sp<WindowI> fe::ext::NullViewer::getWindowI ( void  ) const
inlinevirtual

Returns the internally-created WindowI.

Implements fe::ext::QuickViewerI.

◆ insertBeatHandler()

virtual void fe::ext::NullViewer::insertBeatHandler ( sp< HandlerI spHandlerI)
inlinevirtual

Add an extra handler for the core heartbeat.

Implements fe::ext::QuickViewerI.

◆ insertDrawHandler()

void fe::ext::NullViewer::insertDrawHandler ( sp< HandlerI spHandlerI)
virtual

Specify a handler for render signals.

Implements fe::ext::QuickViewerI.

◆ insertEventHandler()

virtual void fe::ext::NullViewer::insertEventHandler ( sp< HandlerI spEventHandler)
inlinevirtual

Add an extra handler for raw event signals.

Implements fe::ext::QuickViewerI.

◆ interestPoint()

virtual SpatialVector fe::ext::NullViewer::interestPoint ( void  ) const
inlinevirtual

Returns the center of attention.

Implements fe::ext::QuickViewerI.

◆ open()

virtual void fe::ext::NullViewer::open ( void  )
inlinevirtual

Map the viewer to the screen.

Implements fe::ext::QuickViewerI.

◆ run()

void fe::ext::NullViewer::run ( U32  frames)
virtual

Run the viewer for a specified number of frames.

The window will be opened automatically.

For unlimited frames, specify zero.

Implements fe::ext::QuickViewerI.

References fe::Counted::count(), fe::ext::AsViewer::viewer_layer, and fe::ext::AsViewer::viewer_spatial.


The documentation for this class was generated from the following files:
