fe::ext::WindowEvent Class Reference
Plugin Extensions » Windowing Interface

Generalized windowing event. More...

#include <WindowEvent.h>

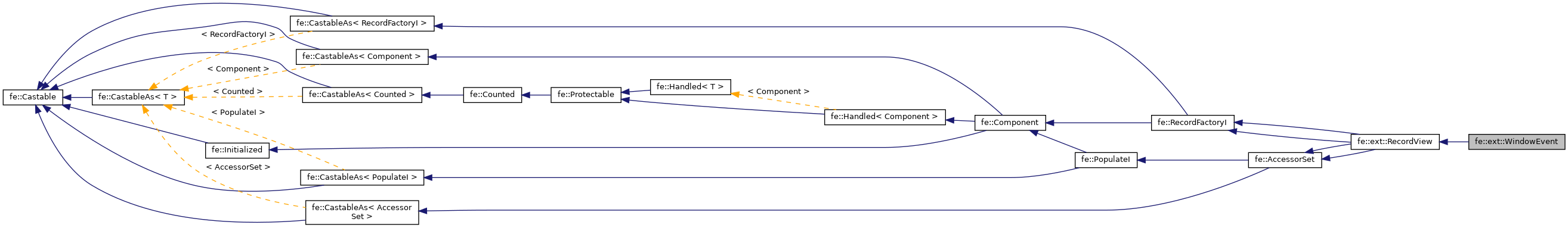

Inheritance diagram for fe::ext::WindowEvent:
Inheritance graph
[legend]

Public Types

enum  Source {
  e_sourceNull = 0x0000,
  e_sourceMousePosition = 0x0001,
  e_sourceMouseButton = 0x0002,
  e_sourceKeyboard = 0x0004,
  e_sourceSystem = 0x0008,
  e_sourceUser = 0x0010,
  e_sourceJoy0 = 0x0100,
  e_sourceJoy1 = 0x0200,
  e_sourceJoy2 = 0x0400,
  e_sourceJoy3 = 0x0800,
  e_sourceWheel0 = 0x1000,
  e_sourceWheel1 = 0x2000,
  e_sourceWheel2 = 0x4000,
  e_sourceWheel3 = 0x8000,
  e_sourceAny = 0x7fffffff
}
 Source of a window event. More...

enum  Item {
  e_itemNull = 0x00,
  e_itemAny = 0x7fffffff,
  e_itemMove = 0x01,
  e_itemDrag = 0x02,
  e_itemLeft = 0x01,
  e_itemMiddle = 0x02,
  e_itemRight = 0x04,
  e_itemWheel = 0x08,
  e_keyBackspace = 0x08,
  e_keyTab = 0x09,
  e_keyLineFeed = 0x0A,
  e_keyCarriageReturn = 0x0D,
  e_keySpace = 0x20,
  e_keyEscape = 0x1B,
  e_keyDelete = 0x7F,
  e_keyAsciiMask = 0xFF,
  e_keyCursor = 0x100,
  e_keyCursorUp = 0x101,
  e_keyCursorDown = 0x102,
  e_keyCursorLeft = 0x103,
  e_keyCursorRight = 0x104,
  e_keyCursorMask = 0x107,
  e_keyFunction = 0x200,
  e_keyFunction1 = 0x201,
  e_keyFunction2 = 0x202,
  e_keyFunction3 = 0x203,
  e_keyFunction4 = 0x204,
  e_keyFunction5 = 0x205,
  e_keyFunction6 = 0x206,
  e_keyFunction7 = 0x207,
  e_keyFunction8 = 0x208,
  e_keyFunction9 = 0x209,
  e_keyFunction10 = 0x20A,
  e_keyFunction11 = 0x20B,
  e_keyFunction12 = 0x20C,
  e_keyFunctionMask = 0x20F,
  e_keyShift = 1<<24,
  e_keyCapLock = 1<<25,
  e_keyControl = 1<<26,
  e_keyAlt = 1<<27,
  e_keyModifiers,
  e_keyUsed = 0x1FFF,
  e_itemIdle = 0x01,
  e_itemResize = 0x02,
  e_itemExpose = 0x04,
  e_itemCloseWindow = 0x08,
  e_itemQuit = 0x10,
  e_itemPoll = 0x20,
  e_itemEnter = 0x40,
  e_itemExit = 0x80,
  e_windowClear = 0x01,
  e_windowSwapBuffers = 0x02,
  e_joyLeftStickX = 0x0000001,
  e_joyLeftStickY = 0x0000002,
  e_joyLeftPadX = 0x0000004,
  e_joyLeftPadY = 0x0000008,
  e_joyRightStickX = 0x0000010,
  e_joyRightStickY = 0x0000020,
  e_joyLeftTrigger = 0x0000040,
  e_joyRightTrigger = 0x0000080,
  e_joySelect = 0x0000100,
  e_joyBack = 0x0000100,
  e_joyGuide = 0x0000200,
  e_joyStart = 0x0000400,
  e_joyLeftUp = 0x0001000,
  e_joyLeftDown = 0x0002000,
  e_joyLeftLeft = 0x0004000,
  e_joyLeftRight = 0x0008000,
  e_joyLeftHigh = 0x0010000,
  e_joyLeftLow = 0x0020000,
  e_joyLeftDepress = 0x0040000,
  e_joyRightUp = 0x0100000,
  e_joyRightDown = 0x0200000,
  e_joyRightLeft = 0x0400000,
  e_joyRightRight = 0x0800000,
  e_joyRightHigh = 0x1000000,
  e_joyRightLow = 0x2000000,
  e_joyRightDepress = 0x4000000,
  e_joyAxes = 0x00000FF,
  e_joyButtons = 0xFF7F700,
  e_joyAny = 0xFF7F7FF,
  e_JoyWheel = e_joyLeftStickX,
  e_JoyClutch = e_joyLeftStickY,
  e_JoyGasPedal = e_joyRightStickX,
  e_JoyBrake = e_joyRightStickY,
  e_JoyShifterRight = e_joyLeftLow,
  e_JoyShifterLeft = e_joyRightLow
}
 Aspect of change in a window event. More...

enum  State {
  e_stateForceSigned = -1,
  e_stateNull = 0x00,
  e_statePress = 0x01,
  e_stateRelease = 0x02,
  e_stateRepeat = 0x04,
  e_stateAny = 0x7fffffff,
  e_state2ClickGeneric = 0x00,
  e_state2ClickSingle = 0x01,
  e_state2ClickDouble = 0x02,
  e_state2ClickTriple = 0x03,
  e_state2NoRelease = 0x04
}
 Effect of change in a window event. More...

enum  MouseButtons {
  e_mbNone = 0x00,
  e_mbLeft = 0x01,
  e_mbMiddle = 0x02,
  e_mbRight = 0x04,
  e_mbAll = 0x07,
  e_mbAny = 0x7fffffff
}
 State of the mouse buttons during an event. More...


Public Member Functions

virtual void addFunctors (void)
 Called at instantiation to add functors. More...

virtual void initializeRecord (void)
 Called at instantiation to initialize attributes. More...

bool operator== (const WindowEvent &other) const

bool operator< (const WindowEvent &other) const

Source source (void) const

void setSource (Source value)

Item item (void) const

void setItem (Item value)

State state (void) const

void setState (State value)

State state2 (void) const

void setState2 (State value)

I32 mouseX (void) const

void setMouseX (I32 value)

I32 mouseY (void) const

void setMouseY (I32 value)

MouseButtons mouseButtons (void) const

void setMouseButtons (MouseButtons value)

void reset (void)

void getMousePosition (I32 *pMx, I32 *pMy) const

void setMousePosition (I32 mx, I32 my)

void setSIS (Source source, Item item, State state)

BWORD matchesSource (Source sourceMask) const

BWORD matchesItem (Item itemMask) const

BWORD matchesItemUnmodified (Item itemMask) const

BWORD matchesState (State stateMask) const

BWORD is (Source sourceMask, Item itemMask, State stateMask) const

BWORD is (const WindowEvent &mask) const

BWORD is (const Mask &mask) const

BWORD isUnmodified (Source sourceMask, Item itemMask, State stateMask) const

BWORD isModified (void)

BWORD isModifiedBy (Item itemMask)

BWORD isNull (void) const

BWORD isExpose (void) const

BWORD isResize (void) const

BWORD isCloseWindow (void) const

BWORD isIdleMouse (void) const

BWORD isPoll (void) const

BWORD isContinuous (void) const

BWORD isMouseEnter (void) const

BWORD isMouseExit (void) const

BWORD isMouseMotion (void) const

BWORD isMouseMove (void) const

BWORD isMouseDrag (void) const

BWORD isKeyboard () const

BWORD isKeyPress (Item key) const

BWORD isKeyRepeat (Item key) const

BWORD isKeyRelease (Item key) const

BWORD isKeyTyped (Item key) const

BWORD isMouseButton (Item item=e_itemAny) const

BWORD isMousePress (Item item=e_itemAny) const

BWORD isMouseRelease (Item item=e_itemAny) const

BWORD isMouseWheel (void) const

BWORD isClear (void) const

BWORD isSwap (void) const

BWORD isSystem (void) const

BWORD isUser (void) const

BWORD isJoy (void) const

BWORD isJoyAxis (void) const

BWORD isJoyButton (void) const

BWORD usesModifiers (void) const
 Returns TRUE if item can be affected by shift/control/caplock. More...

- Public Member Functions inherited from fe::ext::RecordView
void setName (const String &name)

const String verboseName (void) const

void bind (sp< Scope > &rspScope)
 Associate with a Scope. More...

void bind (hp< Scope > &rhpScope)
 Associate with a Scope by Handle. More...

hp< Scope > & scope (void)
 Return associated Scope. More...

void unbind (void)
 Disassociate with any Record. More...

void bind (const Record record, BWORD weak=FALSE)
 Associate with a specific Record. More...

void bind (const WeakRecord weakRecord, BWORD weak=FALSE)
 Associate with a specific WeakRecord. More...

void setWeakRecord (const WeakRecord weakRecord)
 Associate with a specific WeakRecord. More...

virtual void produce (Record &rRecord)
 Produce a Record using all the attributes. More...

virtual void finalize (Record &rRecord)
 Finalize a Record using all the attributes. More...

Record createRecord (void)
 Create a Record using all the attributes. More...

WeakRecord record (void) const
 Access the record by weak (fast) reference. More...

sp< Layout > layout (void)
 Access a Layout of all the attributes. More...

void dump (void)
 Spew attributes and state for the bound Record. More...

virtual void finalizeRecord (void)
 Called right after instantiation to finalize complex attributes. More...

void setName (const String &name)

const String verboseName (void) const

void bind (sp< Scope > &rspScope)
 Associate with a Scope. More...

void bind (hp< Scope > &rhpScope)
 Associate with a Scope by Handle. More...

hp< Scope > & scope (void)
 Return associated Scope. More...

void bind (const sp< RecordArray > &rspRecordArray)
 Associate with a specific RecordArray. More...

void unbind (void)
 Disassociate with any Record or RecordArray. More...

void bind (const Record record, BWORD weak=FALSE)
 Associate with a specific Record. More...

void bind (const WeakRecord weakRecord, BWORD weak=FALSE)

void setIndex (U32 index)
 Set the index into the bound RecordArray. More...

BWORD step (void)
 Step through the records in the array. More...

U32 index (void)
 Return the current index into the RecordArray. More...

virtual void produce (Record &rRecord)
 Produce a Record using all the attributes. More...

virtual void finalize (Record &rRecord)
 Finalize a Record using all the attributes. More...

Record createRecord (void)
 Create a Record using all the attributes. More...

WeakRecord record (void) const
 Access the record by weak (fast) reference. More...

sp< Layout > layout (void)
 Access a Layout of all the attributes. More...

void dump (void)
 Spew attributes and state for the bound Record. More...

virtual void finalizeRecord (void)
 Called right after instantiation to finalize complex attributes. More...

- Public Member Functions inherited from fe::AccessorSet
 AccessorSet (sp< Scope > spScope)

virtual FE_UWORD size (void) const

virtual BaseAccessor * operator[] (FE_UWORD index)

bool operator== (const AccessorSet &a_aset) const

bool operator< (const AccessorSet &a_aset) const

bool bind (const WeakRecord a_record)

void bind (sp< Scope > spScope)

virtual void populate (sp< Layout > spLayout)

void enforceHaving (const AccessorSet &a_other)

bool bindCheck (sp< Layout > spLayout)

bool check (sp< LayoutSB > spLayout)

bool check (sp< LayoutAV > spLayout)

bool bindCheck (sp< RecordArray > spRA)

bool check (sp< RecordArray > spRA)

bool check (const WeakRecord &a_record)

bool check (const Record &a_record)

void check (const WeakRecord a_record, const char *a_annotation)

void enforce (const String &a_ifHas)

void filter (sp< RecordGroup > rg_output, sp< RecordGroup > rg_input)

hp< Scope > scope (void)

void filter (std::vector< Record > &a_records, sp< RecordGroup > rg_input)

void filter (std::vector< WeakRecord > &a_records, sp< RecordGroup > rg_input)

const t_bitset & bitset (void) const

void setBitset (const t_bitset &a_bs)

void add (BaseAccessor &a_accessor, const String &a_attribute)

void add (BaseAccessor &a_accessor)

void attach (const WeakRecord &a_record)

- Public Member Functions inherited from fe::Component
const String & name (void) const
 Return the components chosen name. More...

const String verboseName (void) const
 Return the annotated chosen name. More...

void setName (const String &name)
 Rename the component to anything you want. More...

hp< Registry > registry (void) const
 Get the Registry that created this component. More...

void adjoin (sp< Component > spComponent)
 Tie this component's lifetime to another. More...

sp< Component > create (const String &implementation, BWORD quiet=FALSE) const
 Convienience function to registry()->create() More...

void disjoin (void)
 Untie component from Hub, if connected. More...

String factoryName (void)

void setLibrary (sp< Library > spLibrary)
 Store a reference to the library used to instantiate this component. More...

sp< Library > library (void)
 Get the library that created the component. More...

void setFactoryIndex (I32 a_factoryIndex)
 Set the library's factory index. More...

I32 factoryIndex (void)
 Get the library's factory index. More...

void setSingleton (BWORD set)
 Specify whether component is a singleton. More...

BWORD isSingleton (void)
 Return whether component is a singleton. More...

virtual void acquire (void)
 Specialized reference increment. More...

virtual void release (void)
 Specialized reference decrement. More...

- Public Member Functions inherited from fe::Handled< Component >
const hp< Component > & getHandle (void) const
 Get a safe handle to this object. More...

- Public Member Functions inherited from fe::Protectable
virtual I32 protection (void) const

virtual void protect (void)

virtual void unprotect (void)

virtual Protectable * clone (Protectable *pInstance=NULL)

- Public Member Functions inherited from fe::Counted
virtual void acquire (int &rCount)
 Increment the reference count (and get the count) More...

virtual void abandon (void)
 Decrement the reference count. More...

int count (void) const
 Return the count of references. More...

void setName (const String &)

void trackReference (void *pReference, String what)

void untrackReference (void *pReference)

void registerRegion (void *pT, U32 bytes)

- Public Member Functions inherited from fe::Initialized
void initializeAll (void)

void setActive (bool a_active)


Static Public Member Functions

static WindowEvent::Mask stringToMask (const String &a_string)

- Static Public Member Functions inherited from fe::ext::RecordView
template<typename T >
static void registerFactory (sp< Scope > spScope)
 Indicate a RecordFactoryI for a Scope. More...

static sp< RecordGroup > loadRecordGroup (sp< Scope > spScope, String filename, BWORD a_binary=FALSE)
 Load a RecordGroup from a file. More...

static sp< RecordGroup > loadRecordGroupFromBuffer (sp< Scope > spScope, String buffer, BWORD a_binary=FALSE)
 Serialize a RecordGroup from a string. More...

static void saveRecordGroup (sp< Scope > spScope, sp< RecordGroup > &rspRecordGroup, String filename, BWORD a_binary=FALSE)
 Save a RecordGroup to a file. More...

template<typename T >
static void registerFactory (sp< Scope > spScope)
 Indicate a RecordFactoryI for a Scope. More...

static sp< RecordGroup > loadRecordGroup (sp< Scope > spScope, String filename, BWORD a_binary=FALSE)
 Load the root RecordGroup from a file. More...

static sp< RecordGroup > loadRecordGroupFromBuffer (sp< Scope > spScope, String buffer, BWORD a_binary=FALSE)

static void saveRecordGroup (sp< Scope > spScope, sp< RecordGroup > &rspRecordGroup, String filename, BWORD a_binary=FALSE)
 Save the root RecordGroup to a file. More...

- Static Public Member Functions inherited from fe::Counted
static String reportTracker (void)

static U32 trackerCount (void)


Public Attributes

Functor< I32 > eventSource

Functor< I32 > eventItem

Functor< I32 > eventState

Functor< I32 > eventState2

Functor< I32 > eventMouseX

Functor< I32 > eventMouseY

Functor< I32 > eventMouseButtons

- Public Attributes inherited from fe::ext::RecordView
Accessor< int > count


Additional Inherited Members

- Protected Types inherited from fe::Initialized
typedef void(* InitializeFunction) (Initialized *)

- Protected Member Functions inherited from fe::ext::RecordView
void add (BaseAccessor &rFunctor, const char *name)
 Add an attribute Functor. More...

 RecordView (const RecordView &rRecordView)

void add (BaseAccessor &rFunctor, const char *name)
 Add an attribute Functor. More...

- Protected Member Functions inherited from fe::Handled< Component >
void abandonHandle (void)

- Protected Member Functions inherited from fe::Counted
int releaseInternal (void)
 Decrement the reference count. More...

void suppressReport (void)

- Protected Member Functions inherited from fe::Initialized
void addInitializer (InitializeFunction function)

- Protected Attributes inherited from fe::AccessorSet
hp< Scope > m_hpScope

Array< BaseAccessor * > m_accessors

t_bitset m_bitset

WeakRecord m_optional_record

- Related Functions inherited from fe::Component
FE_DL_EXPORT void FE_CDECL checkUnload (sp< Library > &pLibrary, Component *pComponent=NULL)
 Delete the component and unload libraries where appropriate. More...


Detailed Description

Generalized windowing event.

This is a convenience class to access a window event Record.

Instead of a massive enumeration, the events are interpreted into a useful triple: source/item/state. This is not only more manageable, but it lets you process events with simple masks.

The source is where the event originated.

The item is the aspect of the source that was affected.

The state is how the aspect was affected. A few events merit a second state value, given by state2.

The mouse positions and button states are also available for most events. Not all events necessarily merit mouse information.

Several simple convenience functions of the form is*() are provided to check common events or event masks.

Member Enumeration Documentation

◆ Item

enum fe::ext::WindowEvent::Item

Aspect of change in a window event.

◆ MouseButtons

enum fe::ext::WindowEvent::MouseButtons

State of the mouse buttons during an event.

◆ Source

enum fe::ext::WindowEvent::Source

Source of a window event.

◆ State

enum fe::ext::WindowEvent::State

Effect of change in a window event.

Member Function Documentation

◆ addFunctors()

virtual void fe::ext::WindowEvent::addFunctors ( void  )
inlinevirtual

Called at instantiation to add functors.

In addition to using add() to explicitly adding all the functors for a particular class, the implementation of this function should first call addFunctors() for all directly inherited classes that are indirectly or directly derived from RecordView().

Implements fe::ext::RecordView.

◆ initializeRecord()

virtual void fe::ext::WindowEvent::initializeRecord ( void  )
inlinevirtual

Called at instantiation to initialize attributes.

In addition to setting any attributes, the implementation of this function should first call initializeRecord() for all directly inherited classes that are indirectly or directly derived from RecordView().

Functors can be used as accessors at this point.

Reimplemented from fe::ext::RecordView.

References fe::operator==().

◆ usesModifiers()

BWORD fe::ext::WindowEvent::usesModifiers ( void  ) const
inline

Returns TRUE if item can be affected by shift/control/caplock.

The documentation for this class was generated from the following files:
Generated by   doxygen 1.8.13
