Make Connections through Beacon. More...

#include <GuidePostI.h>

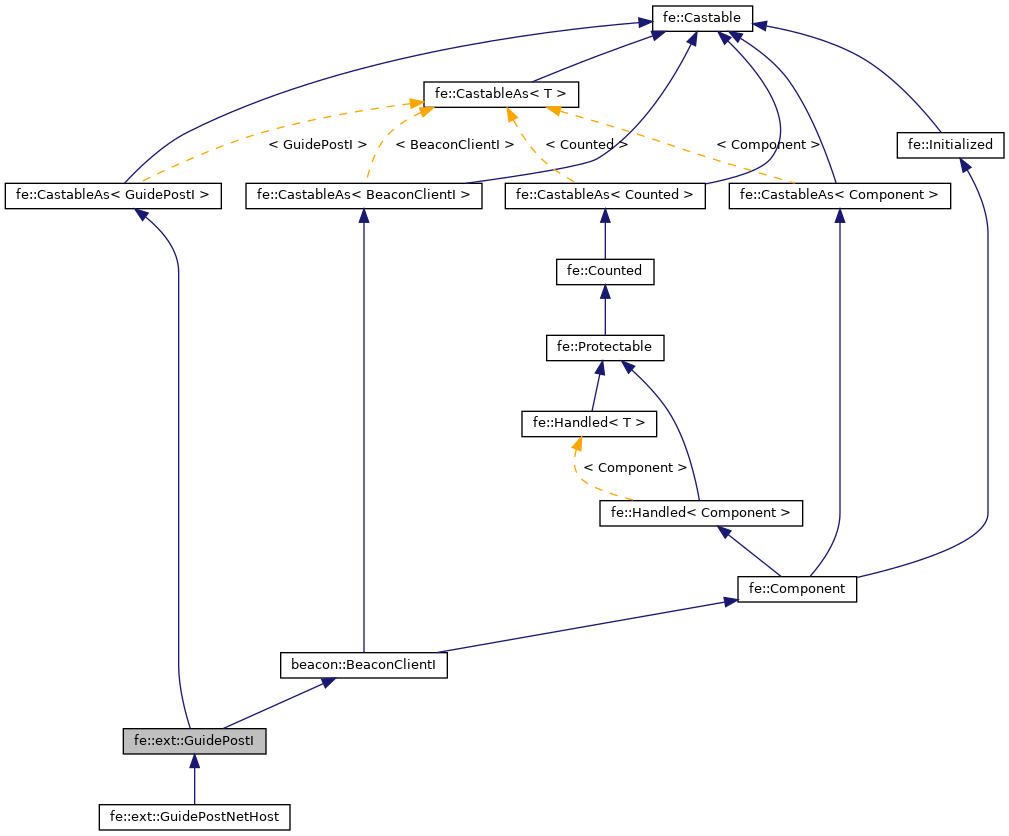

Inheritance diagram for fe::ext::GuidePostI:

[legend]

Public Member Functions
virtual BWORD	connect (String a_configuration)=0
	connect to the Beacon server More...

virtual void	listSpaces (Array< String > &a_rSpaceList)=0
	get the known space names More...

virtual sp< StateCatalog >	connectToSpace (String a_space)=0
	find and connect to space More...

virtual sp< StateCatalog >	createSpace (String a_space, sp< Catalog > a_spCatalog)=0
	invoke a new named space More...

Public Member Functions inherited from beacon::BeaconClientI
virtual bool	registerWithBeacon (const BeaconConfig &config, bool timeSync)=0
	Registers node with the Beacon. More...

virtual void	shutdown ()=0
	Shutdowns the thread monitoring the Beacon and sending keep alive messages. More...

virtual uint8_t	getID ()=0
	Returns the unique ID of this client instance. More...

virtual int64_t	getTimeOffset ()=0
	Returns the time offset between the clock on the Beacon and the local processor. More...

virtual int64_t	getBeaconTime ()=0
	Returns the current time plus the offset to give you the Beacon time. More...

virtual int64_t	getLatency ()=0
	Returns the estimated latency between the server and the client. More...

virtual bool	isListUpdated ()=0
	Returns true if the list has of nodes has changed. More...

virtual void	getList (std::list< Node > &registeredNode)=0
	Fills in the list of nodes registered with the Beacon. More...

virtual bool	isBeaconAlive ()=0
	Returns true if the Beacon is alive (received a response from the Beacon within the timeout period) More...

virtual bool	dictionaryGet (std::vector< std::pair< fe::String, fe::String >> &list)=0
	Global Dictionary access functions. More...

virtual bool	dictionarySet (const std::vector< std::pair< fe::String, fe::String >> &list)=0
	Sets name/values in the Global Dictionary. More...

virtual bool	dictionaryUnset (const std::vector< std::pair< fe::String, fe::String >> &list)=0
	Unsets name/value pairs in the Global Dictionary given a list of names. More...

virtual bool	dictionaryClear ()=0
	Clears the Global Dictionary. More...

virtual bool	dictionaryGetRegex (const fe::String searchString, std::vector< std::pair< fe::String, fe::String >> &list)=0
	Gets the all matching pairs in the Global Dictionary using the regex search string. More...

virtual uint64_t	dictionaryGetUpdateCounter ()=0
	Get the last update counter received for the Global Dictionary. More...

Public Member Functions inherited from fe::Component
const String &	name (void) const
	Return the components chosen name. More...

const String	verboseName (void) const
	Return the annotated chosen name. More...

void	setName (const String &name)
	Rename the component to anything you want. More...

hp< Registry >	registry (void) const
	Get the Registry that created this component. More...

void	adjoin (sp< Component > spComponent)
	Tie this component's lifetime to another. More...

sp< Component >	create (const String &implementation, BWORD quiet=FALSE) const
	Convienience function to registry()->create() More...

void	disjoin (void)
	Untie component from Hub, if connected. More...

String	factoryName (void)

void	setLibrary (sp< Library > spLibrary)
	Store a reference to the library used to instantiate this component. More...

sp< Library >	library (void)
	Get the library that created the component. More...

void	setFactoryIndex (I32 a_factoryIndex)
	Set the library's factory index. More...

I32	factoryIndex (void)
	Get the library's factory index. More...

void	setSingleton (BWORD set)
	Specify whether component is a singleton. More...

BWORD	isSingleton (void)
	Return whether component is a singleton. More...

virtual void	acquire (void)
	Specialized reference increment. More...

virtual void	release (void)
	Specialized reference decrement. More...

Public Member Functions inherited from fe::Handled< Component >
const hp< Component > &	getHandle (void) const
	Get a safe handle to this object. More...

Public Member Functions inherited from fe::Protectable
virtual I32	protection (void) const

virtual void	protect (void)

virtual void	unprotect (void)

virtual Protectable *	clone (Protectable *pInstance=NULL)

Public Member Functions inherited from fe::Counted
virtual void	acquire (int &rCount)
	Increment the reference count (and get the count) More...

virtual void	abandon (void)
	Decrement the reference count. More...

int	count (void) const
	Return the count of references. More...

void	setName (const String &)

void	trackReference (void *pReference, String what)

void	untrackReference (void *pReference)

void	registerRegion (void *pT, U32 bytes)

Public Member Functions inherited from fe::Initialized
void	initializeAll (void)

void	setActive (bool a_active)

Additional Inherited Members
Static Public Member Functions inherited from fe::Counted
static String	reportTracker (void)

static U32	trackerCount (void)

Protected Types inherited from fe::Initialized
typedef void(*	InitializeFunction) (Initialized *)

Protected Member Functions inherited from fe::Handled< Component >
void	abandonHandle (void)

Protected Member Functions inherited from fe::Counted
int	releaseInternal (void)
	Decrement the reference count. More...

void	suppressReport (void)

Protected Member Functions inherited from fe::Initialized
void	addInitializer (InitializeFunction function)

Related Functions inherited from fe::Component
FE_DL_EXPORT void FE_CDECL	checkUnload (sp< Library > &pLibrary, Component *pComponent=NULL)
	Delete the component and unload libraries where appropriate. More...

Detailed Description

Make Connections through Beacon.

Member Function Documentation

◆ connect()

virtual BWORD fe::ext::GuidePostI::connect ( String a_configuration )

pure virtual

connect to the Beacon server

The configuration string is currently just an IP address, but this may be extended in the future.

An empty configuration string will use default settings.

Returns FALSE if no connection could be made.

Implemented in fe::ext::GuidePostNetHost.

◆ connectToSpace()

virtual sp<StateCatalog> fe::ext::GuidePostI::connectToSpace ( String a_space )

pure virtual

find and connect to space

Find a match space in beacon nodes and connect. A StateCatalog of the appropriate implementation is returned. If no such space exists or the connection failed, an invalid reference is returned.

Implemented in fe::ext::GuidePostNetHost.
